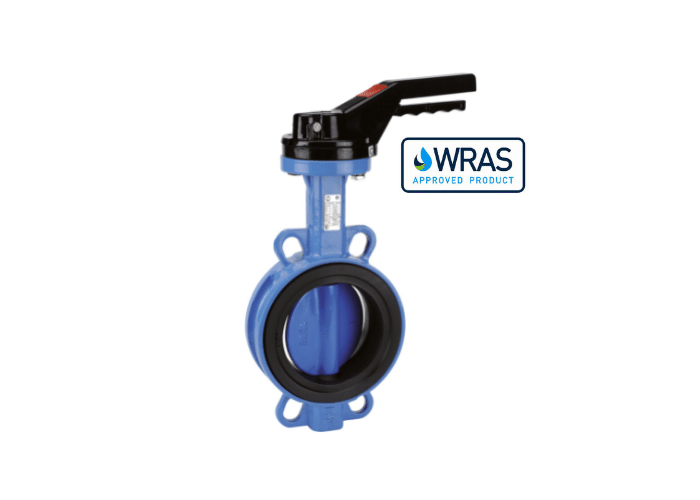

WRAS Approved Wafer Butterfly Valve. Ductile Iron GGG40.

Orseal Fig.1170 WRAS Approved,Wafer Butterfly valve.
WRAS certified according to Water Regulatory Advisory Scheme standards and is therefore suitable for use within networks of drinking water, cold and hot water.

– Direct ISO PAD 5211
– WRAS Approved
– Disc GGG40 epoxy coated
– Seals : EPDM

End Connections

Connection flanges PN 10/16
Working Pressure

16 bar
Sizes Available

1 1/2″ – 12″
Temperature

-10°C – +110°C
Specification

WRAS Approved

Available options

Part No.	Size	DN	Description
1170-11/2	1 1/2″	40	WRAS Wafer Butterfly Valve GGG40
1170-2	2″	50	WRAS Wafer Butterfly Valve GGG40
1170-21/2	2 1/2″	65	WRAS Wafer Butterfly Valve GGG40
1170-3	3″	80	WRAS Wafer Butterfly Valve GGG40
1170-4	4″	100	WRAS Wafer Butterfly Valve GGG40
1170-5	5″	125	WRAS Wafer Butterfly Valve GGG40
1170-6	6″	150	WRAS Wafer Butterfly Valve GGG40
1170-8	8″	200	WRAS Wafer Butterfly Valve GGG40
1170-10	10″	250	WRAS Wafer Butterfly Valve GGG40
1170-12	12″	300	WRAS Wafer Butterfly Valve GGG40
