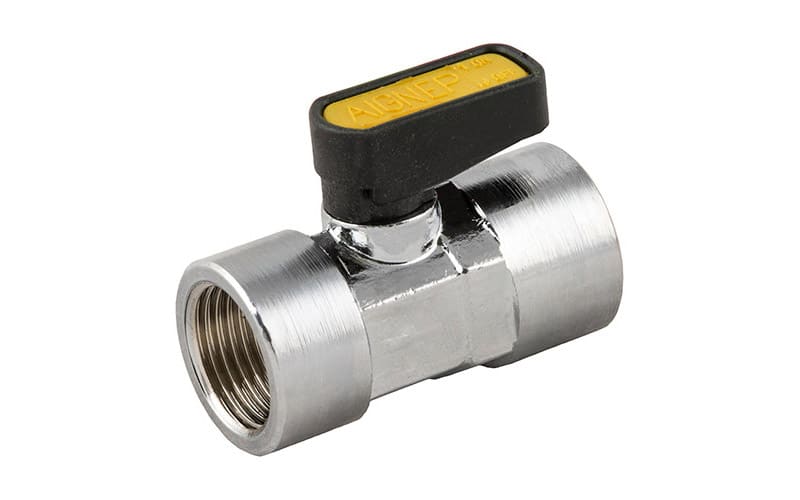

6300 Mini Ball Valve Female x Female BSPP

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:
Compressed Air, Pneumatics, Fluidtechnology, Food & Beverage, Inert Gases & Vacuum & Plumbing

End Connections

Female x Female BSPP
Working Pressure

-0.99 Bar – 20 Bar
Temperature

-20°c – +80°c
Body

Chrome Nickel Plated Brass
Lever

PA66 Plastic Glass Reinforced.
Seals

NBR
Approvals

BS EN 331:2015
Sizes Available

1/8″ – 3/4″

Techseal Ball Valves, gas and fire approved.
BS EN331:2015 Certified. Awarded BSI Kitemark

Available options

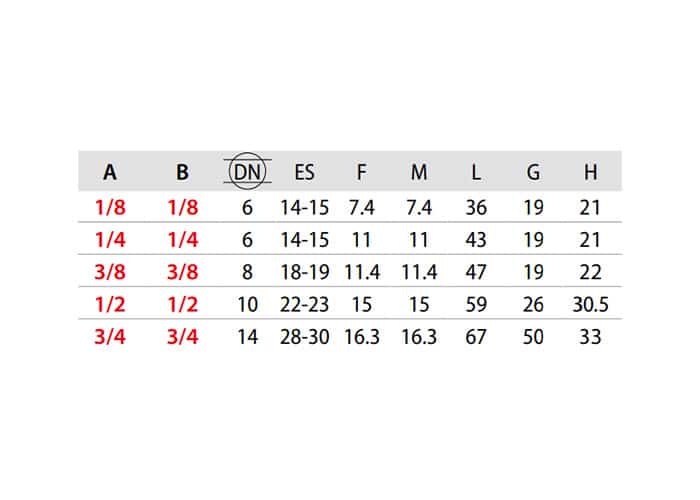

Part No	Size	Description
6300-XX	1/8 x 1/8	FEMALE FEMALE BALL VALVE
6300-AA	1/4 x 1/4	FEMALE FEMALE BALL VALVE
6300-BB	3/8 x 3/8	FEMALE FEMALE BALL VALVE
6300-CC	1/2 x 1/2	FEMALE FEMALE BALL VALVE
6300-EE	3/4 x 3/4	FEMALE FEMALE BALL VALVE
