6310 Mini Ball Valve Male BSPT x Female BSPP

6310 Mini Ball Valve Drawing

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:

Compressed Air
Pneumatics
Fluidtechnology
Food & Beverage
Inert Gases & Vacuum
Plumbing

End Connections

Male BSPT x Female BSPP
Working Pressure

-0.99 Bar – 20 Bar
Temperature

-20°c – +80°c
Body

Chrome Nickel Plated Brass
Lever

PA66 Plastic Glass Reinforced.
Seals

NBR
Approvals

BE EN 331:2015
Sizes Available

1/8″ – 3/4″

Available options

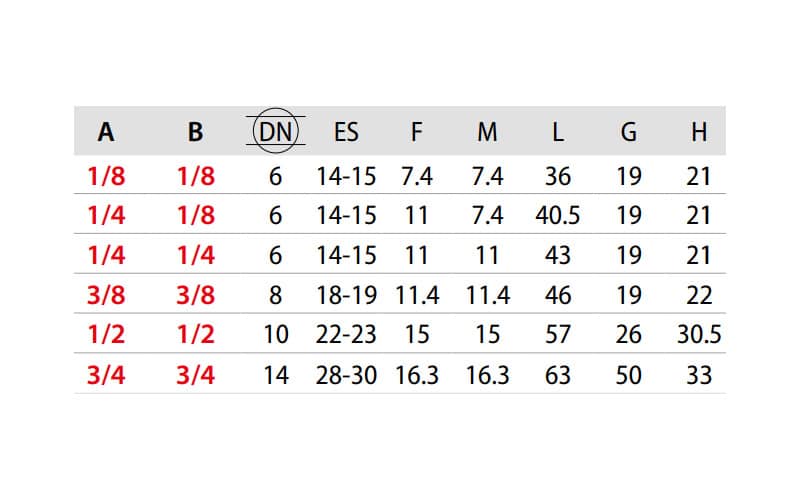

Part No	Size	Description
6310-XX	1/8 x 1/8	MALE FEMALE BALL VALVEE
6310-AX	1/4 x 1/8	MALE FEMALE BALL VALVEE
6310-AA	1/4 x 1/4	MALE FEMALE BALL VALVE
6310-BB	3/8 x 3/8	MALE FEMALE BALL VALVE
6310-CC	1/2 x 1/2	MALE FEMALE BALL VALVE
6310-EE	3/4 x 3/4	MALE FEMALE BALL VALVE
