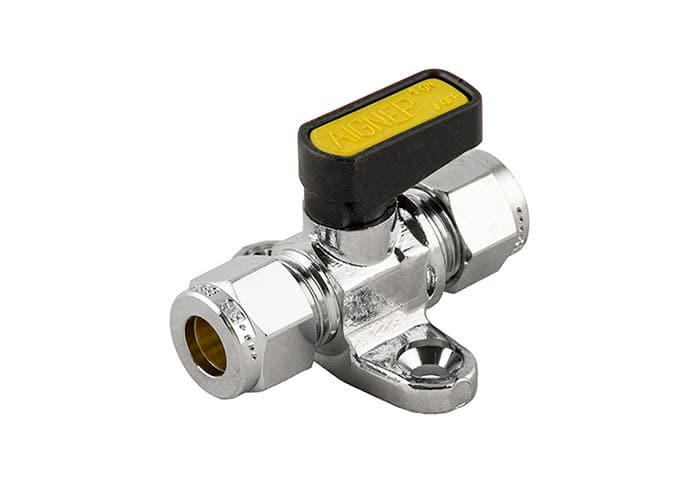

6500 Foot Mounted Mini Ball Valve 8mm Tube x 8mm Tube

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:

Compressed Air
Pneumatics
Fluidtechnology
Food & Beverage
Inert Gases & Vacuum
Plumbing

End Connections

8mm Tube x 8mm Tube
Working Pressure

-0.99 Bar – 20 Bar
Temperature

-20°c – +80°c
Body

Chrome Nickel Plated Brass
Lever

PA66 Plastic Glass Reinforced.
Seals

NBR
Approvals

BE EN 331:2015
Sizes Available

8mm Comp

Available options

Part No	Size	Description
6500-T8T8	8mm x 8mm	COMP BALL VALVE FOOT MOUNTED
