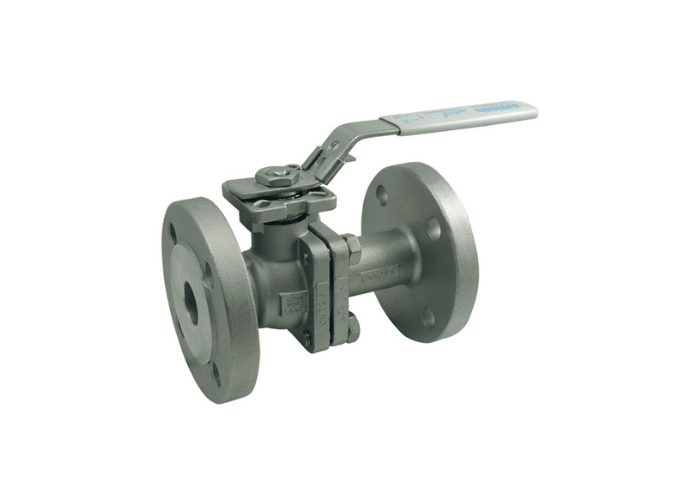

Split-Body Ball Valve, Stainless Steel 316, PN40/16, Direct ISO 5211 ISO Pad.

961 Split-body ball valve :

– Direct ISO PAD 5211
– Axis DIN 3337
– Stainless steel 316 body, ball and axis
– Seals : TFM 1600
– Full bore
– Stainless steel lockable handle
– DIN 3202 F1

End Connections

Connection flanges PN 40/16
Working Pressure

Pn40/16
Sizes Available

1/2″ – 4″
Temperature

-29°C – +175°C
Specification

FIRESAFE API607
ATEX EX II2 G/D CT3
Options Available

TFM 4215 Seats for Steam.
Degreased for use with Oxygen.
Peek Seats.
Actuated.

Available options

Part No.	Size	PN	F to F (mm)
961-1/2	DN15	40	130
961-3/4	DN20	40	150
961-1	DN25	40	160
961-11/4	DN32	40	180
961-11/2	DN40	40	200
961-2	DN50	40	230
961-212	DN65	16	290
961-3	DN80	16	310
961-4	DN100	16	350
