Cast Iron Ball Check Valve, Female threaded ends ISO 228-1.

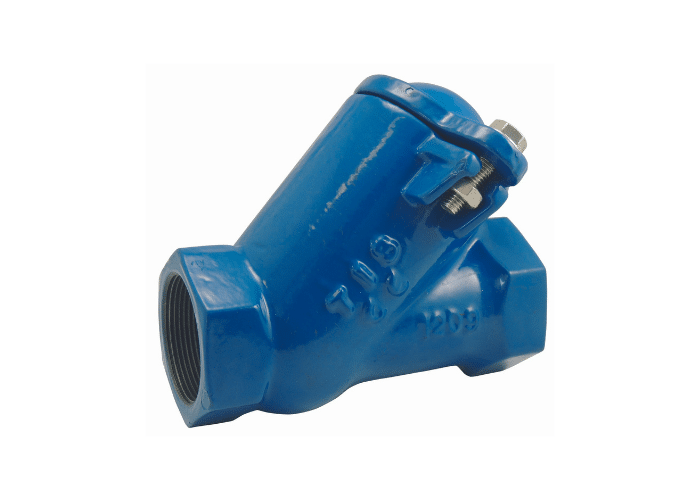

Cast Iron Ball Check Valve. Fig: 398. Female BSPP.
  • Ductile Iron Body + Blue Epoxy Coating.
  • Resin ball + NBR Seat (1″ to 1 1/2″)
  • NBR coated Aluminium ball (2″ to 3″)
  • NBR External seals.
  • SS 316 Bolts
  • Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)
  • End Connections

    Female Threads ISO 228-1

  • Working Pressure

    10 Bar

  • Sizes Available

    1″ – 3″

  • Specification

    EN 1092-2 Standard flange ends.
    Face to Face design to DIN 3202-F4

  • Temperature

    -10°C – +80°C

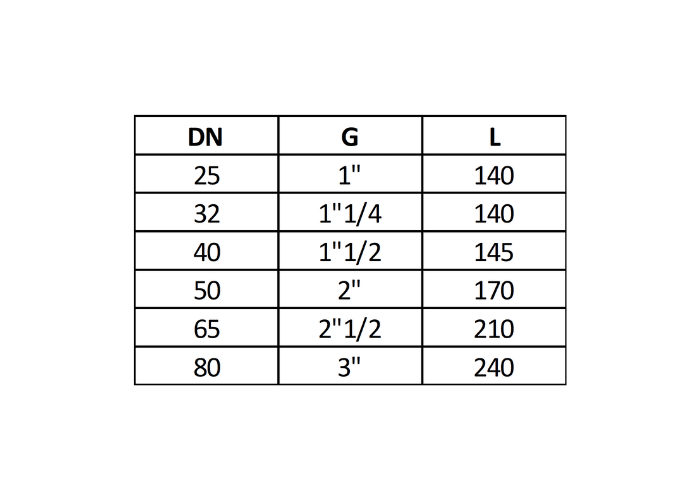

Available options

Part No.
Size
PN
398-11″10
398-11/41 1/4″10
398-11/21 1/2″10
398-22″10
398-21/22 1/2″10
398-33″10
Enquire Now
View Technical data sheet
