Cast Iron Globe Valve. Flanged Ends PN16, Metal to Metal Seat.

Cast Iron Globe Valve

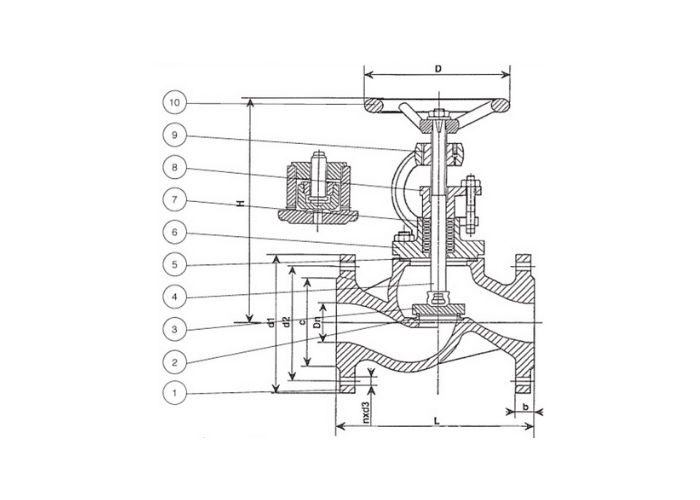

Cast Iron Globe Valve. Fig: 423

Grey Cast Iron GGG-45 Body + Blue Epoxy Coating.
Ductile Iron GGG-45 Gate + EPDM Coating.
SS 304 disc and seat. Stainless Steel Stem.
Rising Stem.
Graphite External Seals. Metal to Metal Seat
Cast Iron Handwheel, Clockwise Close.
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN16
Working Pressure

16 Bar
Sizes Available

DN15 – DN200
Specification

EN 1092-2 Standard flange ends.
Face to Face design to DIN 3202-F4
Temperature

Max 100°C

Available options

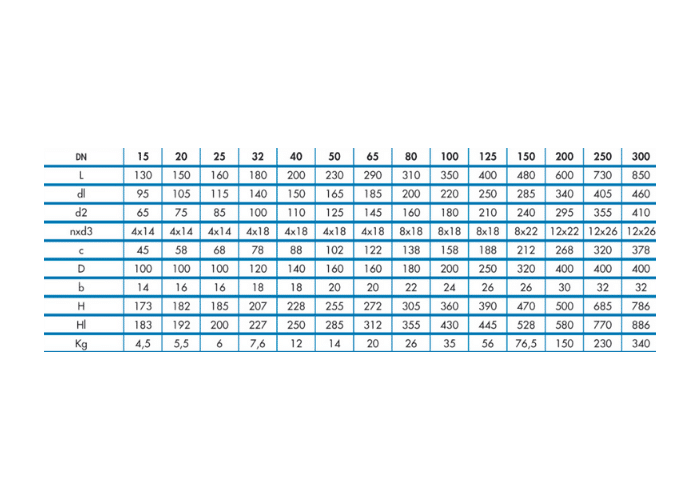

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
423-DN15	DN15		16	130	4	65
423-DN20	DN20		16	150	4	75
423-DN25	DN25		16	160	4	85
423-DN32	DN32		16	180	4	100
423-DN40	DN40		16	200	4	110
423-DN50	DN50		16	230	4	125
423-DN65	DN65		16	290	4	145
423-DN80	DN80		16	310	8	160
423-DN100	DN100		16	350	8	180
423-DN125	DN125		16	400	8	210
423-DN150	DN150		16	480	8	240
423-DN200	DN200		16	600	12	295

View Technical data sheet
