Cast Iron Strainer, Flanged Ends PN10/16.

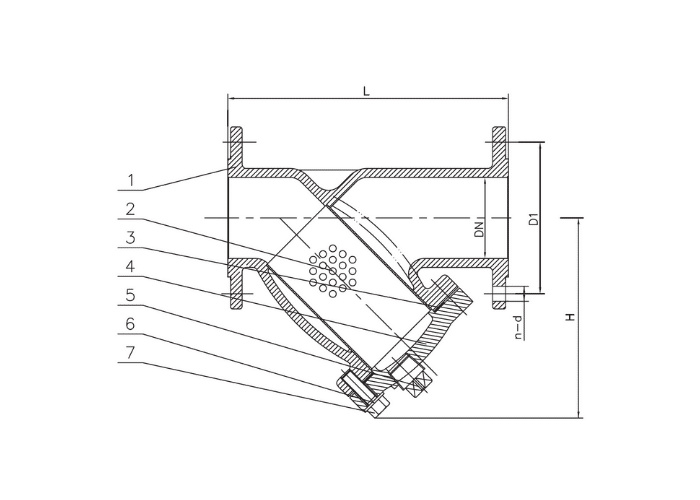

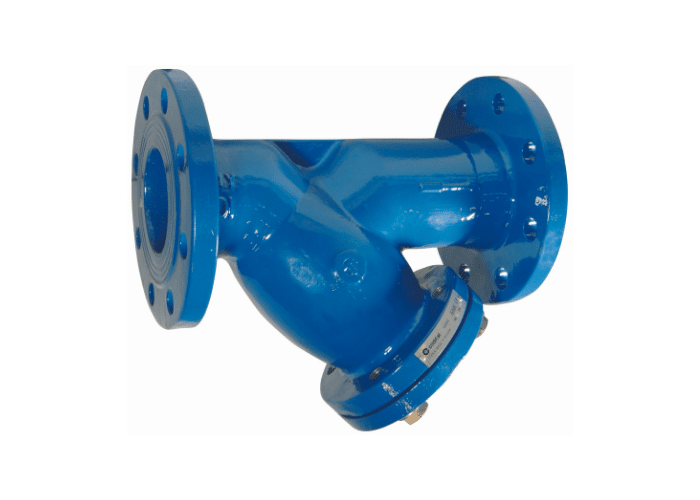

Cast Iron Strainer. Fig: 427. Flanged PN10/16 Ends. Ductile Iron Body.

Ductile Iron GGG-45 Body + Blue Epoxy Coating.
Replaceable SS 316 Screen.
EPDM External Seal.
SS 304 Bolts
Galvanised Cast Iron drain cap.
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN10/16
Working Pressure

16 – 10 Bar
Sizes Available

DN20 – DN300
Mesh

DN 40 -150 : 1.5mm
DN 200-300 : 2mm
Temperature

Max 120°C
Specification

EN 1092-2 Standard flange ends.
Face to Face design to DIN 3202-F4

Available options

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
427-DN20	DN20		16	150	4	75
427-DN25	DN25		16	160	4	85
427-DN32	DN32		16	180	4	100
427-DN40	DN40		16	200	4	110
427-DN50	DN50		16	230	4	125
427-DN65	DN65		16	290	4	145
427-DN80	DN80		16	310	8	160
427-DN100	DN100		16	350	8	180
427-DN125	DN125		16	400	8	210
427-DN150	DN150		16	480	8	240
427-DN200	DN200		16	600	12	295
427-DN200	DN200		10	600	8	295
427-DN250	DN250		16	730	12	355
427-DN250	DN250		10	730	12	350
427-DN300	DN300		16	850	12	410
427-DN300	DN300		10	850	12	400
