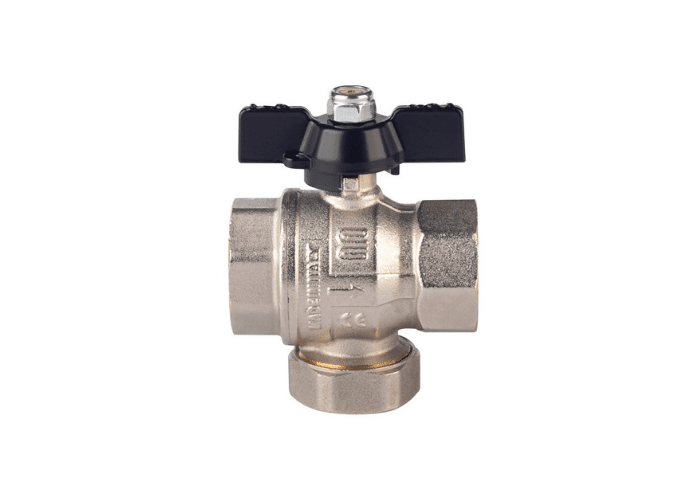

EKO Filter Ball Valves F x F BSPP
Ball Valves with Integrated Filter
The filter is stainless steel mesh of 0.5mm diameter holes (1/2″ and 3/4″) and 0.8mm (1″)

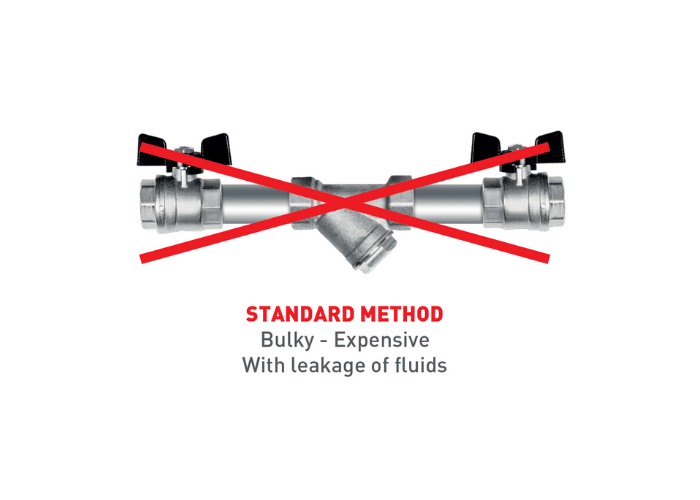

Technical: In terms of overall dimensions the EKO Filter valve is very compact and can be installed in tight spaces where a Y-Strainer and pair of valves are too bulky.

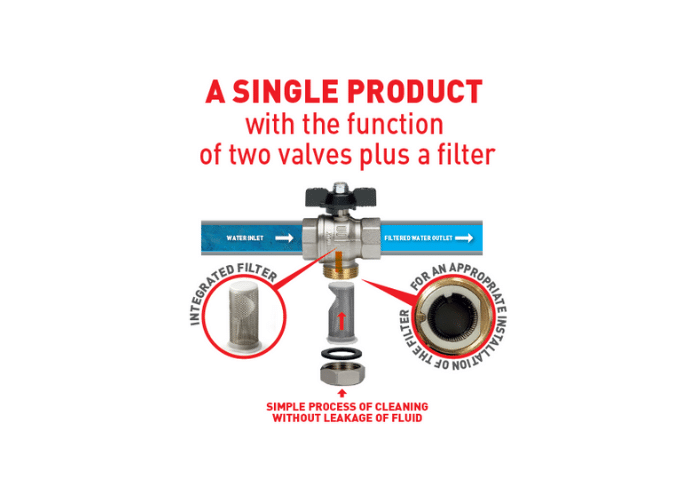

Cost Effective: With the single valve EKO Filter achieves the same function of 2 valves and 1 Y-Strainer.
Maintenance: The process of cleaning or replacement of filter is quick and without the leakage of fluid.
-
End Connections
F x F BSPP UNI ISO 228/1
-
Working Pressure
PN30
-
Temperature
-20°C to +100°C
-
BodyForged Nickel Plated Brass
-
Sizes Available
1/2″, 3/4″, 1″
Available options
Part No |
Size |
Description |
EKO-FFPT-1/2 | 1/2” | EKO FILTER BALL VALVE RB BSPP FXF PN30 |
EKO-FFPT-34 | 3/4” | EKO FILTER BALL VALVE RB BSPP FXF PN30 |
EKO-FFPT-1 | 1” | EKO FILTER BALL VALVE RB BSPP FXF PN30 |
