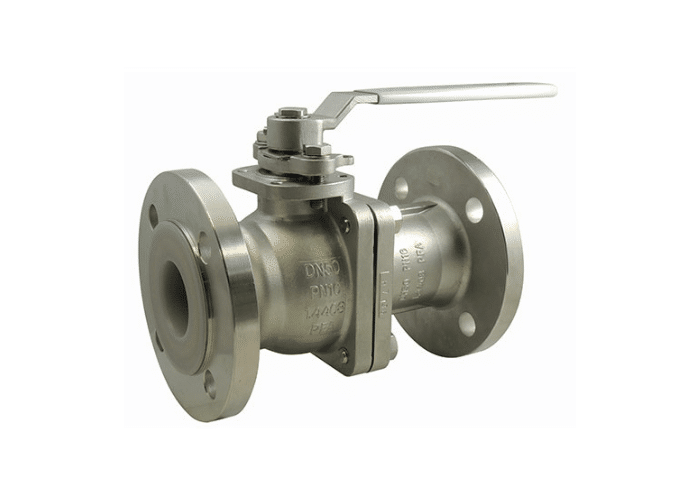

Split-Body PFA Lined Ball Valves.

Split-body PFA lined ball valves.
Body in SS316 with PFA coated wetted parts.
Ball and shaft in PFA coated SS316.
PTFE Seats and packing.
Full port.
ISO5211 Pad for automation.
Flanged PN40/16 according to EN 1092-1 & DIN 3202 F1.

  • End Connections

    Connection flanges PN 16

  • Working Pressure

    Pn16

  • Sizes Available

    1/2″ – 6″

  • Temperature

    -29°C – +160°C

Available options

Part No.
Size
PN
F to F (mm)
P961-1/21/2″ DN1516130
P961-3/43/4″ DN2016150
P961-11″ DN2516160
P961-11/41 1/4″ DN3216180
P961-11/21 1/2″ DN4016200
P961-22″ DN5016230
P961-21/22 1/2″ DN6516290
P961-33″ DN8016310
P961-44″ DN10016350
P961-66″ DN15016480
Enquire Now
