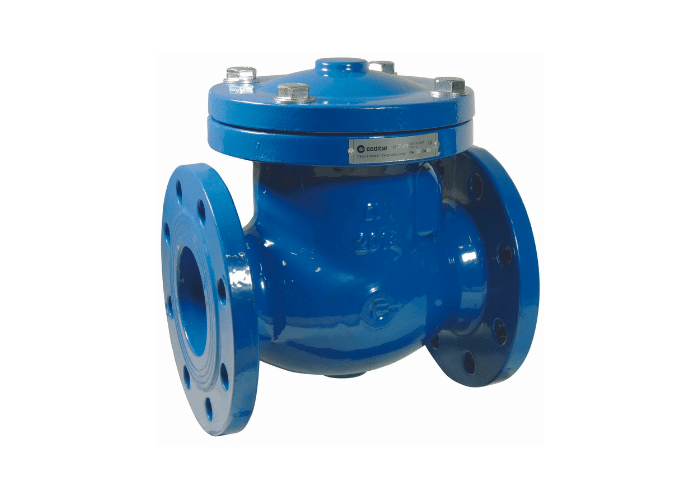

Cast Iron Swing Check Valve, Flanged Ends PN10/16, Metal/EPDM Seal.

Swing Check Valve. Fig:1426. Cast Iron GGG-45 Body. Metal/EPDM Seal.

Ductile Iron GGG-45 Body + Blue Epoxy Coating.
Ductile Iron GGG-45 Gate + EPDM Coating.
Bronze Seat.
EPDM External Seals.
Metal to EPDM seal.
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN10/16
Working Pressure

16 – 10 Bar
Sizes Available

DN40 – DN400
Temperature

Max 90°C
Specification

EN 1092-2 Standard flange ends.
Face to Face design to DIN 3202-F4

Available options

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
1426-DN40	DN40		16	180	4	110
1426-DN50	DN50		16	200	4	125
1426-DN65	DN65		16	240	4	145
1426-DN80	DN80		16	260	8	160
1426-DN100	DN100		16	300	8	180
1426-DN125	DN125		16	350	8	210
1426-DN150	DN150		16	400	8	240
1426-DN200	DN200		16	500	12	295
1426-DN200	DN200		10	500	8	295
1426-DN250	DN250		16	600	12	355
1426-DN250	DN250		10	600	12	350
1426-DN300	DN300		16	700	12	410
1426-DN300	DN300		10	700	12	400
