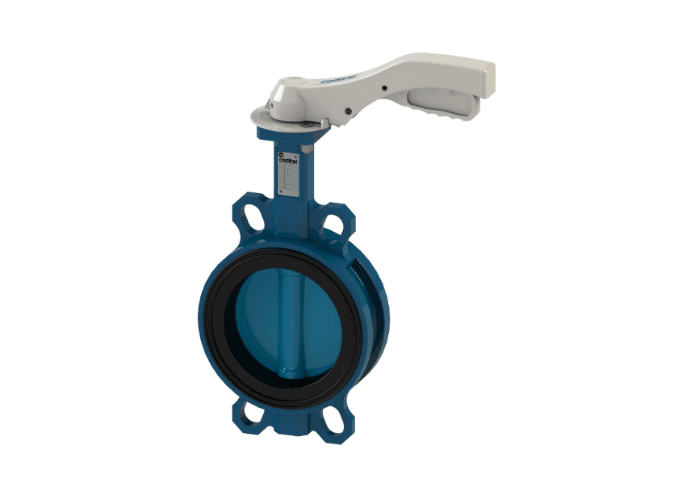

WAFER type butterfly valve, coated ductile iron body and disc, EPDM seat.

  • Ductile iron EN-GJS-400-15 (GGG-40) body + epoxy coating. Standardised face-to-face according to EN 558-1 series 20
  • Ductile iron EN-GJS-400-15 (GGG-40) disc + epoxy coating.
  • Aluminium lockable handle + epoxy coating. 10 positions; 0 to 90°.
  • ISO 5211 pad and square drive shaft for motorisation.
  • Flange connection with multi-standards positioning lugs (EN 1092 PN10-16, ANSI 150).
  • Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)
  • End Connections

    Flanged Ends PN10 / PN16

  • Working Pressure

    16 Bar

  • Sizes Available

    DN50 – DN200

  • Temperature

    -5°C to +70°C

  • Specification

    EN 1092-2 Standard flange ends.
    Face to Face design to DIN 3202-F4

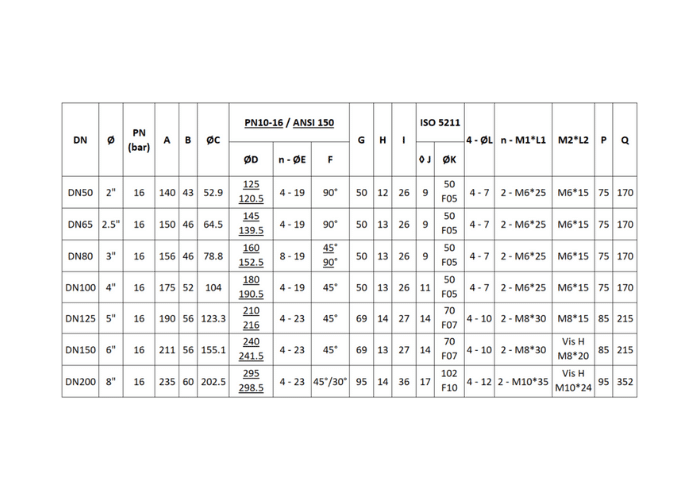

Available options

Part No.
Size
PN
Flange
Stem (mm)
ISO
F-to-F
173-DN50 DN50 16 PN10-16/AISI 150 9 F05 43
173-DN65 DN65 16 PN10-16/AISI 150 9 F05 46
173-DN80 DN80 16 PN10-16/AISI 150 9 F05 46
173-DN100 DN100 16 PN10-16/AISI 150 11 F05 52
173-DN125 DN125 16 PN10-16/AISI 150 14 F07 56
173-DN150 DN150 16 PN10-16/AISI 150 14 F07 56
173-DN200 DN200 16 PN10-16/AISI 150 17 F10 60
