Brass Bulkhead Connector Tube x Tube

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Tube x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    4mm – 14mm
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

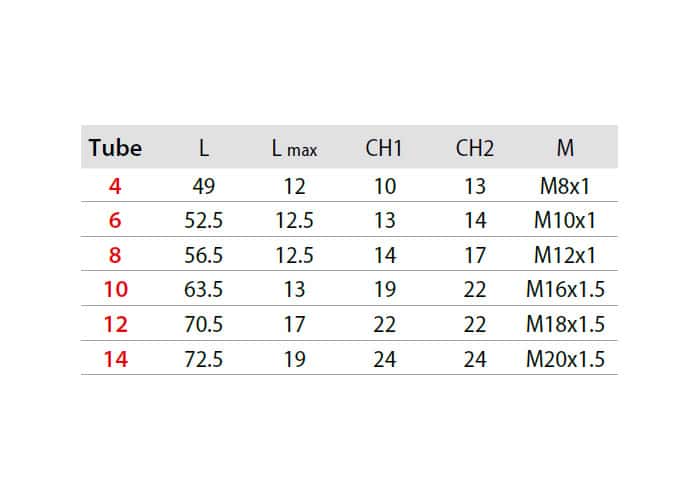

Available options

Part No
Size
Description
13465-T04 4mm BRASS BULKHEAD CONNECTOR
13465-T06 6mm BRASS BULKHEAD CONNECTOR
13465-T08 8mm BRASS BULKHEAD CONNECTOR
13465-T10 10mm BRASS BULKHEAD CONNECTOR
13465-T12 12mm BRASS BULKHEAD CONNECTOR
13465-T14 14mm BRASS BULKHEAD CONNECTOR
Enquire now for pricing
