Brass, Orienting Elbow, Male BSPP with OR

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Male BSPP x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    4mm x 1/8″ – 22mm x 1″
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

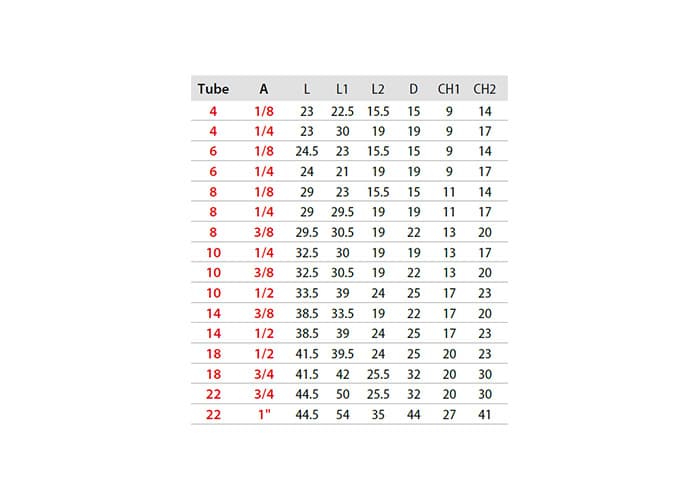

Available options

Part No
Size
Description
13300-T04X 4mm – 1/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T04A 4mm – 1/4″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T06X 6mm – 1/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T06A 6mm – 1/4″ B BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T08X 8mm – 1/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T08A 8mm – 1/4″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T08B 8mm – 3/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T10A 10mm – 1/4″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T10B 10mm – 3/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T10C 10mm – 1/2″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T14B 12mm – 3/8″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T14C 14mm – 1/2″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T18C 18mm – 1/2″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T18E 18mm – 3/4″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T22E 22mm – 3/4″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
13300-T22F 22mm – 1″ BRASS ORIENTING ELBOW MALE ADAPTOR (PARALLEL)
Enquire now for pricing
