Brass, Straight Male BSPT Stud Coupling

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Male BSPT x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    4mm x 1/8″ – 22mm x 3/4″
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

Available options

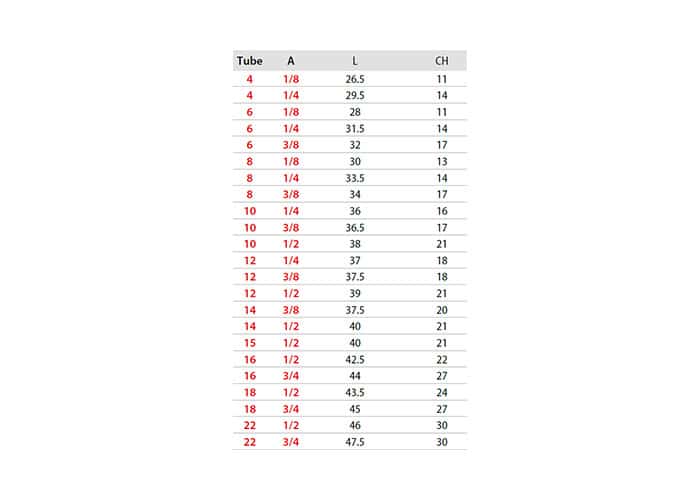

Part No
Size
Description
13480-T04X 4mm – 1/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T04A 4mm – 1/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T06X 6mm – 1/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T06A 6mm – 1/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T06B 6mm – 3/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T08X 8mm – 1/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T08A 8mm – 1/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T08B 8mm – 3/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T10A 10mm – 1/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T10B 10mm – 3/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T10C 10mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T12A 12mm – 1/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T12B 12mm – 3/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T12C 12mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T14B 12mm – 3/8″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T14C 14mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T15C 15mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T16C 16mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T16E 16mm – 3/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T18C 18mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T18E 18mm – 3/4″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T22C 22mm – 1/2″ BRASS STRAIGHT MALE STUD (BSPT)
13480-T22E 22mm – 3/4″ BRASS STRAIGHT MALE STUD (BSPT)
Enquire now for pricing
