Brass Reducing Nipple Male x Male BSPP

Brass Threaded Fittings suitable for a wide range of applications.

High quality finishing and machining.
BSPP Threaded ends according to ISO 228-1 standard.

End Connections

Male BSPP
Working Pressure

16 Bar
Material

Brass
Sizes Available

1/4″ x 1/8″ – 3″ x 21/2″
Specification

Suitable for use with potable water.
4MS Compliant

Available options

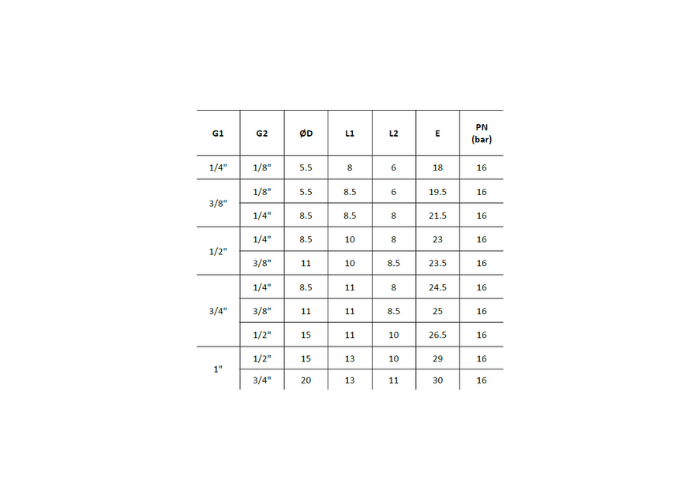

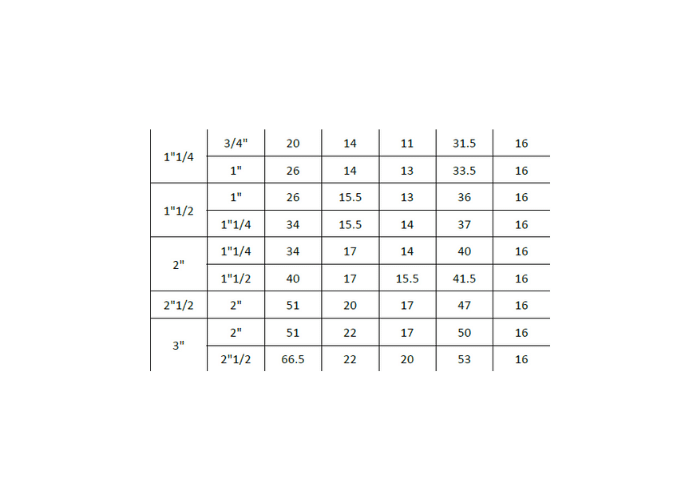

Part No	Size	Description
1245-1/4×1/8	1/4×1/8	1245 BRASS RED.NIPPL.MM1/4″x1/8″
1245-3/8×1/8	3/8×1/8	1245 BRASS RED.NIPPL.MM3/8″x1/8″
1245-3/8×1/4	3/8×1/4	1245 BRASS RED.NIPPL.MM3/8″x1/4″
1245-1/2×1/4	1/2×1/4	1245 BRASS RED.NIPPL.MM1/2″x1/4″
1245-1/2×3/8	1/2×3/8	1245 BRASS RED.NIPPL.MM1/2″x3/8″
1245-3/4×1/4	3/4×1/4	1245 BRASS RED.NIPPL.MM3/4″x1/4″
1245-3/4×3/8	3/4×3/8	1245 BRASS RED.NIPPL.MM3/4″x3/8″
1245-3/4×1/2	3/4×1/2	1245 BRASS RED.NIPPL.MM3/4″x1/2″
1245-1×1/2	1×1/2	1245 BRASS RED.NIPPLE MM1″X1/2″
1245-1×3/4	1×3/4	1245 BRASS RED.NIPPLE MM1″X3/4″
1245-11/4×3/4	1 1/4×3/4	1245 BRASS RED.NIPP.MM1″1/4×3/4″
1245-11/4×1	1 1/4×1	1245 BRASS RED.NIPPLE MM1″1/4×1″
1245-11/2×1	1 1/2×1	1245 BRASS RED.NIPPLE MM1″1/2×1″
1245-11/2×11/4	1 1/2×1 1/4	1245 BRAS.RED.NIPP.MM1″1/2×1″1/4
1245-2×11/4	2×1 1/4	1245 BRASS RED.NIPPLE MM2″X1″1/4
1245-2×11/2	2×1 1/2	1245 BRASS RED.NIPPLE MM2″X1″1/2
1245-21/2×2	2 1/2×2	1245 BRASS RED.NIPPLE MM2″1/2×2″
1245-3×2	3×2	1245 BRASS RED.NIPPLE MM3″X2″
1245-3×21/2	3×2 1/2	1245 BRASS RED.NIPPLE MM3″X2″1/2
