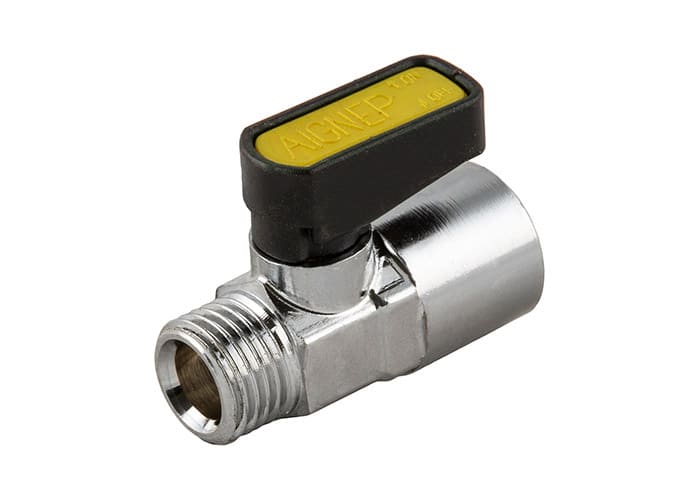

6320 Mini Ball Valve Male BSPP x Female BSPT

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:
  • Compressed Air
  • Pneumatics
  • Fluidtechnology
  • Food & Beverage
  • Inert Gases & Vacuum
  • Plumbing
  • End Connections
    Male BSPT x Female BSPP
  • Working Pressure
    -0.99 Bar – 20 Bar
  • Temperature
    -20°c – +80°c
  • Body
    Chrome Nickel Plated Brass
  • Lever

    PA66 Plastic Glass Reinforced.

  • Seals
    NBR
  • Approvals

    BE EN 331:2015

  • Sizes Available
    1/8″ – 3/4″

Available options

Part No
Size
Description
6320-XX 1/8 x 1/8 MALE FEMALE BALL VALVE
6320-AX 1/4 x 1/8 MALE FEMALE BALL VALVE
6320-AA 1/4 x 1/4 MALE FEMALE BALL VALVE
6320-BB 3/8 x 3/8 MALE FEMALE BALL VALVE
6320-CC 1/2 x 1/2 MALE FEMALE BALL VALVE
6320-EE 3/4 x 3/4 MALE FEMALE BALL VALVE
