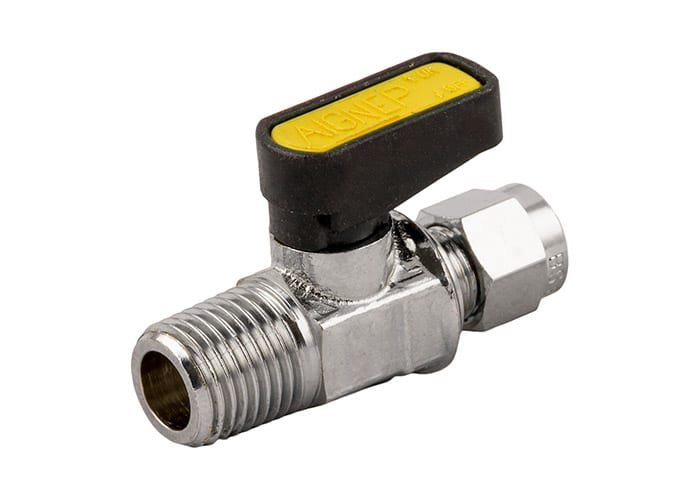

6350 Mini Ball Valve Male BSPT Taper x Tube

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:
  • Compressed Air
  • Pneumatics
  • Fluidtechnology
  • Food & Beverage
  • Inert Gases & Vacuum
  • Plumbing

Available options

Part No
Size
Description
Unit Price
6350-XT6 1/8 – 6mm MALE X COMP BALL VALVE £3.94
6350-XT8 1/8 – 8mm MALE X COMP BALL VALVE £4.02
6350-AT6 1/4 – 6mm MALE X COMP BALL VALVE £3.96
6350-AT8 1/4 – 8mm MALE X COMP BALL VALVE £4.02
6350-BT10 3/8 – 10mm MALE X COMP BALL VALVE £4.28
6350-BT12 3/8 – 12mm MALE X COMP BALL VALVE £4.37
6350-CT14 1/2 – 14mm MALE X COMP BALL VALVE £6.32
6350-CT15 1/2 – 15mm MALE X COMP BALL VALVE £6.32
6350-ET16 1/2 – 16mm MALE X COMP BALL VALVE £8.91
6350-ET18 1/2 – 18mm MALE X COMP BALL VALVE £8.91
  • End Connections
    Male BSPT Taper x Tube
  • Working Pressure
    -0.99 Bar – 20 Bar
  • Temperature
    -20°c – +80°c
  • Body
    Chrome Nickel Plated Brass
  • Lever

    PA66 Plastic Glass Reinforced.

  • Seals
    NBR
  • Approvals

    BE EN 331:2015

  • Sizes Available
    1/8″-3/4″, 6mm – 18mm

£3.94£8.91 Ex. VAT

Enquire now for pricing
