6440 Mini Ball Valve Male BSPP x Tube

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:
  • Compressed Air
  • Pneumatics
  • Fluidtechnology
  • Food & Beverage
  • Inert Gases & Vacuum
  • Plumbing
  • End Connections
    Male BSPP x Tube
  • Working Pressure
    -0.99 Bar – 20 Bar
  • Temperature
    -20°c – +80°c
  • Body
    Chrome Nickel Plated Brass
  • Lever

    PA66 Plastic Glass Reinforced.

  • Seals
    NBR
  • Approvals

    BE EN 331:2015

  • Sizes Available
    1/8″-3/4″, 6mm – 18mm

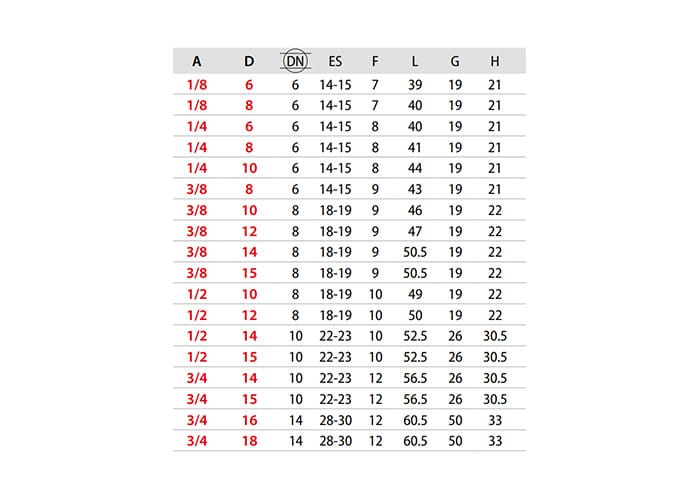

Available options

Part No
Size
Description
6440-XT6 1/4 – 6mm MALE COMP BALL VALVE
6440-XT8 1/8 – 8mm MALE COMP BALL VALVE
6440-AT6 1/4 – 6mm MALE COMP BALL VALVE
6440-AT8 1/4 – 8mm MALE COMP BALL VALVE
6440-AT10 1/4 – 10mm MALE COMP BALL VALVE
6440-BT8 3/8 – 8mm MALE COMP BALL VALVE
6440-BT10 3/8 – 10mm MALE COMP BALL VALVE
6440-BT12 3/8 – 12mm MALE COMP BALL VALVE
6440-BT14 3/8 – 14mm MALE COMP BALL VALVE
6440-BT15 3/8 – 15mm MALE COMP BALL VALVE
6440-CT10 1/2 – 10mm MALE COMP BALL VALVE
6440-CT12 1/2 – 12mm MALE COMP BALL VALVE
6440-CT14 1/2 – 14mm MALE COMP BALL VALVE
6440-CT15 1/2 – 15mm MALE COMP BALL VALVE
6440-ET14 3/4 – 15mm MALE COMP BALL VALVE
6440-ET15 3/4 – 15mm MALE COMP BALL VALVE
6440-ET16 3/4 – 16mm MALE COMP BALL VALVE
6440-ET18 3/4 – 18mm MALE COMP BALL VALVE
