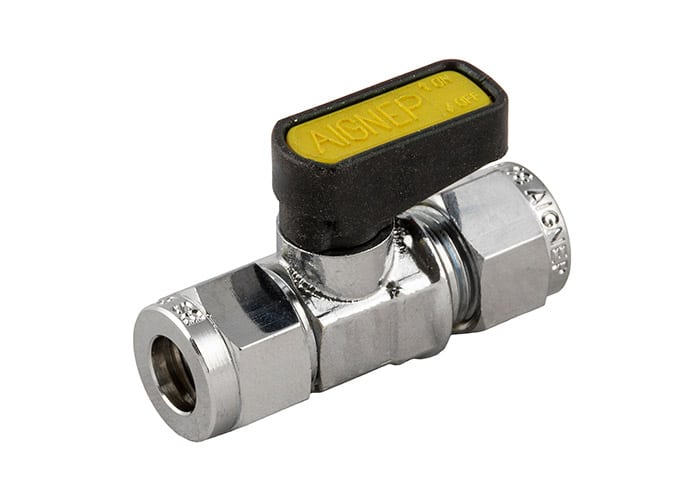

6450 Mini Ball Valve Male Tube x Tube

GHILUX Mini Ball-valves
Supercompact dimensions with excellent performance

Threads: Gas in conformity with ISO 7.1, BS 21, DIN 2999
Parallel gas in conformity with ISO 228 Class A

Suitable for the following applications:
  • Compressed Air
  • Pneumatics
  • Fluidtechnology
  • Food & Beverage
  • Inert Gases & Vacuum
  • Plumbing

Available options

Part No
Size
Description
Unit Price
6450-T6T6 6mm x 6mm COMP BALL VALVE £4.41
6450-T6T8 6mm x 8mm COMP BALL VALVE £4.48
6450-T8T8 8mm x 8mm COMP BALL VALVE £4.58
6450-T10T8 10mm x 8mm COMP BALL VALVE £4.65
6450-T10T10 10mm x 10mm COMP BALL VALVE £4.81
6450-T10T12 10mm x 12mm COMP BALL VALVE £5.13
6450-T12T12 12mm x 12mm COMP BALL VALVE £5.45
6450-T14T10 14mm x 10mm COMP BALL VALVE £5.54
6450-T14T12 14mm x 12mm COMP BALL VALVE £5.56
6450-T14T14 14mm x 14mm COMP BALL VALVE £7.28
6450-T15T14 15mm x 14mm COMP BALL VALVE £7.28
6450-T15T14 15mm x 14mm COMP BALL VALVE £7.28
6450-T15T15 15mm x 15mm COMP BALL VALVE £7.29
6450-T16T14 16mm x 14mm COMP BALL VALVE £8.30
6450-T16T15 16mm x 15mm COMP BALL VALVE £7.92
6450-T18T14 18mm x 14mm COMP BALL VALVE £7.92
6450-T18T15 18mm x 15mm COMP BALL VALVE £7.92
6450-T18T16 18mm x 16mm COMP BALL VALVE £10.24
6450-T18T18 18mm x 18mm COMP BALL VALVE £10.24
  • End Connections
    Tube x Tube
  • Working Pressure
    -0.99 Bar – 20 Bar
  • Temperature
    -20°c – +80°c
  • Body
    Chrome Nickel Plated Brass
  • Lever

    PA66 Plastic Glass Reinforced.

  • Seals
    NBR
  • Approvals

    BE EN 331:2015

  • Sizes Available
    6mm – 18mm
    Equal and Unequal

£4.41£10.24 Ex. VAT

Enquire now for pricing
