Butterfly Valve, Lug Type (threaded) SS 316 Disc & EPDM Seat.

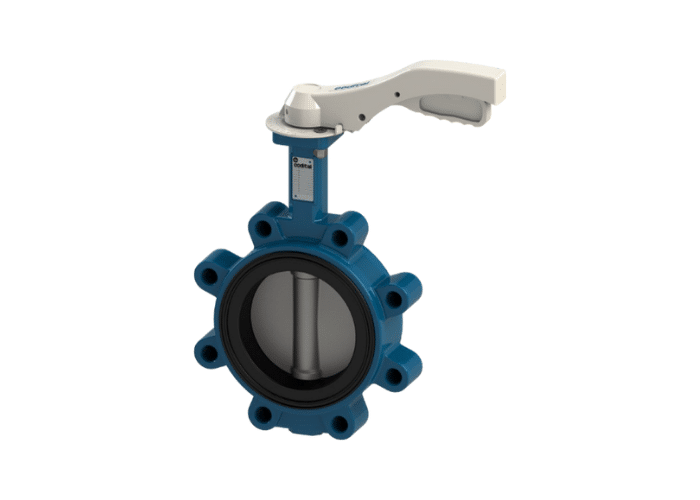

  • Lugged Type Butterfly Valve SS316 Disc

Butterfly valve lug type features:

  • Ductile iron EN-GJS-400-15 (GGG-40) body + epoxy coating. Standardised face-to-face according to EN 558-1 series 20
  • Stainless Steel CF8M AISI 316 Disc
  • Aluminium lockable handle + epoxy coating. 10 positions; 0 to 90°.
  • ISO 5211 pad and square drive shaft for motorisation.
  • Flange connection with multi-standards positioning lugs (EN 1092 PN10-16, ANSI 150).
  • Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)
  • End Connections

    Flanged Ends PN10 / PN16

  • Working Pressure

    16-10 Bar

  • Sizes Available

    DN50 – DN200

  • Temperature

    -5°C to +115°C

  • Specification

    EN 1092-2 Standard flange ends.
    Face to Face design to DIN 3202-F4

£69.05£378.00 Ex. VAT

Available options

Part No.
Size
PN
Flange
Stem (mm)
ISO
F-to-F (mm)
Unit Price
1174-DN50DN5016PN10-169F0543£69.05
1174-DN65DN6516PN10-169F0546£86.57
1174-DN80DN8016PN10-169F0546£94.99
1174-DN100DN10016PN10-1611F0552£131.80
1174-DN125DN12516PN10-1614F0756£180.35
1174-DN150DN15016PN10-1614F0756£215.00
1174-DN200DN20010PN1017F1060£378.00
