Industrial Valves by Orseal

Lockable Gas Approved Brass Ball Valve

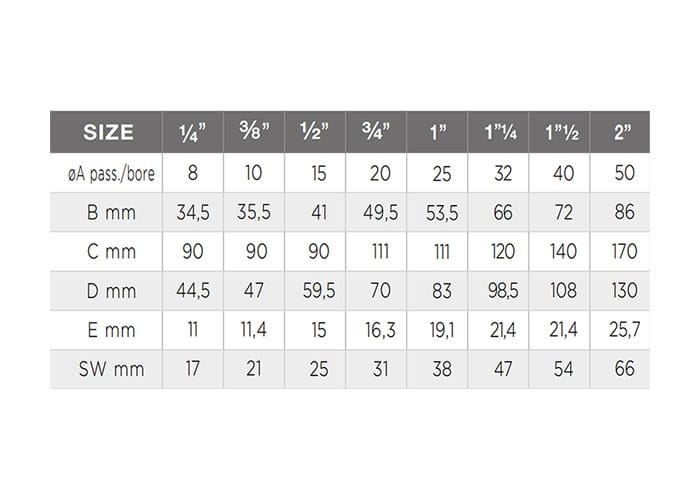

Lockable Gas Ball Valve Drawing
Lockable Gas Ball Valve. Seires 720PS. Gas Approved to EN:331 standards.
720PS Series Gas Approved. Lockable Lever Op Brass Nickel Plated Ball Valve FF.
Full bore valve for fuel gas, professional series.
Made in Italy.
  • End Connections
    F x F BSPP EN 10226
  • Working Pressure
    Fuel Gas 5 MOP
    Other uses PN 50 up to 1/2″ and PN 16 up to 4″
  • Temperature
    Fuel Gas – 20°c to +60°c
    Other uses -20°c to +130°c
  • Body
    Forged Nickel Plated Brass
  • Lever
    Zinc Plated Steel PVC Insulated
  • Seals
    PTFE
  • Approvals
    EN: 331
  • Sizes Available

    1/4″ to 2″

Available options

Part No
Size
Description
720TS/LK-1/21/2″F x F Full Bore Brass Lockable EN331 Ball Valve
720TS/LK-3/43/4″F x F Full Bore Brass Lockable EN331 Ball Valve
720TS/LK-11″F x F Full Bore Brass Lockable EN331 Ball Valve
720TS/LK-11/411/4″F x F Full Bore Brass Lockable EN331 Ball Valve
720TS/LK-11/211/2″F x F Full Bore Brass Lockable EN331 Ball Valve
720TS/LK-22″F x F Full Bore Brass Lockable EN331 Ball Valve
Enquire Now
View Technical data sheet
