Stainless Steel 3 Way L Port Ball Valve.

Stainless Steel 3 Way L Port Ball Valve with Lockable Lever, Female BSPP threads. Series: SSBV3W70L.

3 Way Stainless Steel ball valve features;

  • End Connections
    Female BSPP x Female BSPP
  • Working Pressure
    1000 psi
  • Temperature

    -20°c – + 100°c

  • Body
    316 Stainless Steel
  • Lever
    304SS with Plastic Cover
  • Seals
    PTFE
  • Sizes Available

    1/4″ – 2″

Available options

Part No
Size
Description
SSBV3W70L-1/41/4″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-3/83/8″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-1/21/2″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-3/43/4″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-11″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-1 1/41 1/4″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-1 1/21 1/2″316SS BSP RB Ball Valve 3 way L port
SSBV3W70L-22″316SS BSP RB Ball Valve 3 way L port
Enquire Now

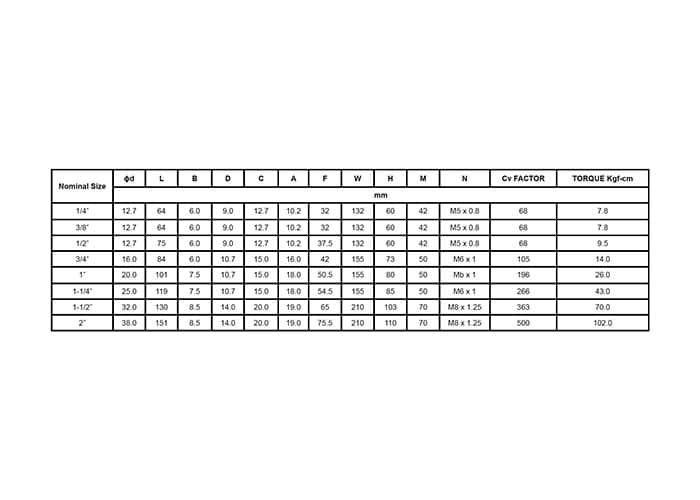

View Technical data sheet
