Brass Hose Tail Stem Adapter

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections

    Stem x Hose tail

  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available

    4mm – 25mm

  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

Available options

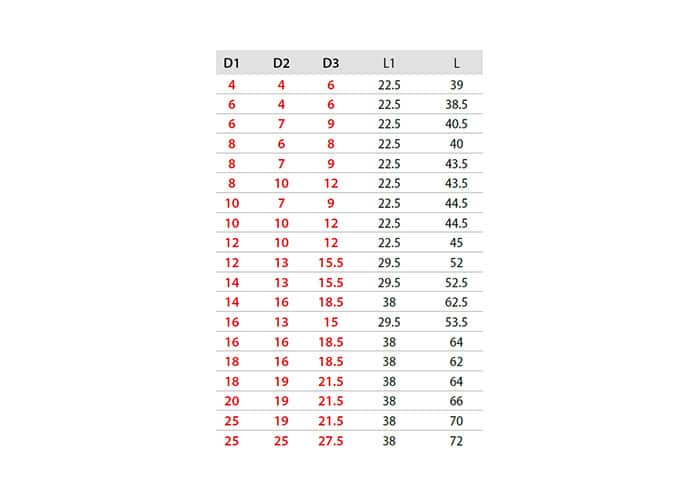

Part No
Size
Description
13540-T04T044mm x 4mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T06T046mm x 4mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T06T076mm x 7mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T08T068mm x 6mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T08T078mm x 7mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T08T108mm x 10mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T10T0710mm x 7mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T10T1010mm x 10mm Brass Hose Tail Stem Adapter (Stem x Hose)
13540-T12T1012mm x 10mm Brass Hose Tail Stem Adapter (Stem x Hose)
13540-T12T1312mm x 13mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T14T1314mm x 13mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T14T1614mm x 16mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T16T1316mm x 13mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T16T1616mm x 16mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T18T1618mm x 16mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T18T1918mm x 19mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T20T1920mm x 19mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T25T1925mm x 19mmBrass Hose Tail Stem Adapter (Stem x Hose)
13540-T25T2525mm x 25mmBrass Hose Tail Stem Adapter (Stem x Hose)
Enquire now for pricing
