Brass Single Banjo Body with Stem & Bi-material Washer

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Male BSPP x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available

    4mm x 1/8″ – 22mm x 3/4″

  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

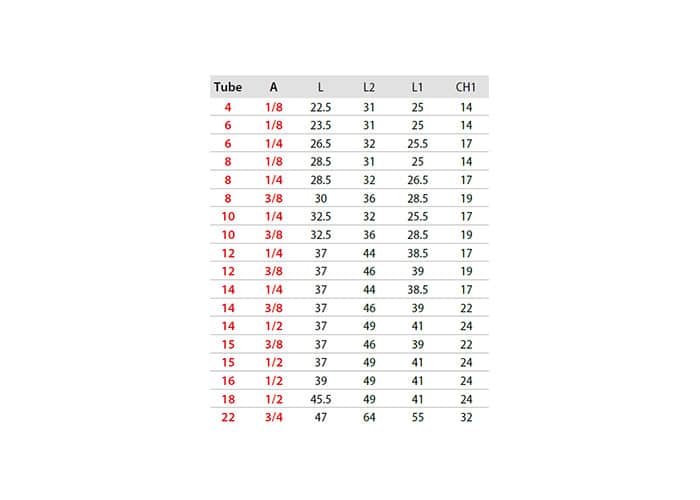

Available options

Part No
Size
Description
13550BI-T04X4mm x 1/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T06X6mm x 1/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T06A6mm x 1/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T08X8mm x 1/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T08A8mm x 1/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T08B8mm x 3/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T10A10mm x 1/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T10B10mm x 3/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T12A12mm x 1/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T12B12mm x 3/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T14A14mm x 1/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T14B14mm x 3/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T14C14mm x 1/2″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T15B15mm x 3/8″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T15C15mm x 1/2″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T16C16mm x 1/2″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T18C18mm x 1/2″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
13550BI-T22E22mm x 3/4″BRASS SINGLE BANJO BODY WITH STEM + BIMATERIAL WASHER
Enquire now for pricing
