Brass, Straight Female BSPP Stud

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Female BSPP x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    4mm x 1/8″ – 22mm x 1″
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

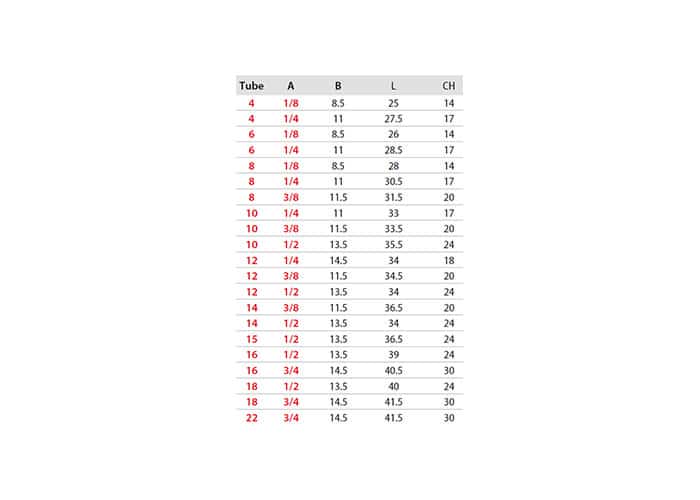

Available options

Part No
Size
Description
13500-T04X 4mm – 1/8″ BRASS STRAIGHT FEMALE STUD
13500-T04A 4mm – 1/4″ BRASS STRAIGHT FEMALE STUD
13500-T06X 6mm – 1/8″ BRASS STRAIGHT FEMALE STUD
13500-T06A 6mm – 1/4″ BRASS STRAIGHT FEMALE STUD
13500-T08X 8mm – 1/8″ BRASS STRAIGHT FEMALE STUD
13500-T08A 8mm – 1/4″ BRASS STRAIGHT FEMALE STUD
13500-T08B 8mm – 3/8″ BRASS STRAIGHT FEMALE STUD
13500-T10A 10mm – 1/4″ BRASS STRAIGHT FEMALE STUD
13500-T10B 10mm – 3/8″ BRASS STRAIGHT FEMALE STUD
13500-T10C 10mm – 1/2″ BRASS STRAIGHT FEMALE STUD
13500-T12A 12mm – 1/4″ BRASS STRAIGHT FEMALE STUD
13500-T12B 12mm – 3/8″ BRASS STRAIGHT FEMALE STUD
13500-T12C 12mm – 1/2″ BRASS STRAIGHT FEMALE STUD
13500-T14B 14mm – 3/8″ BRASS STRAIGHT FEMALE STUD
13500-T14C 14mm – 1/2″ BRASS STRAIGHT FEMALE STUD
13500-T16C 16mm – 1/2″ BRASS STRAIGHT FEMALE STUD
13500-T16E 16mm – 3/4″ BRASS STRAIGHT FEMALE STUD
13500-T18C 18mm – 1/2″ BRASS STRAIGHT FEMALE STUD
13500-T18E 18mm – 3/4″ BRASS STRAIGHT FEMALE STUD
13500-T22E 22mm – 3/4″ BRASS STRAIGHT FEMALE STUD
Enquire now for pricing
