Brass Tee, Male Off Set Leg BSPT

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Tube x Tube x Tube
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    4mm x 1/8″ – 14mm x 1/2″
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000

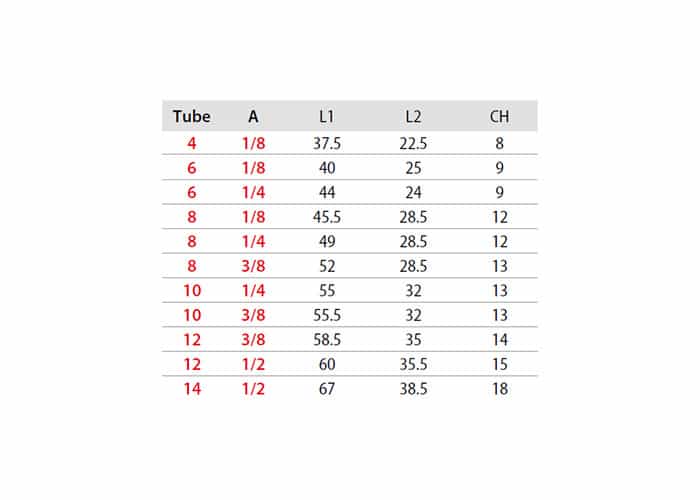

Available options

Part No
Size
Description
13230-T04X 4mm – 1/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T06X 6mm – 1/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T06A 6mm – 1/4″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T08X 8mm – 1/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T08A 8mm – 1/4″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T08B 8mm – 3/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T10A 10mm – 1/4″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T10B 10mm – 3/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T12B 12mm – 3/8″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T12C 12mm – 1/2″ BRASS TEE MALE ADAPTOR OFF SET LEG
13230-T14C 14mm – 1/2″ BRASS TEE MALE ADAPTOR OFF SET LEG
Enquire now for pricing
