Galvanised Malleable Iron Female Reducing Elbow 90°

  • Galvanised Reducing Elbow Female 90

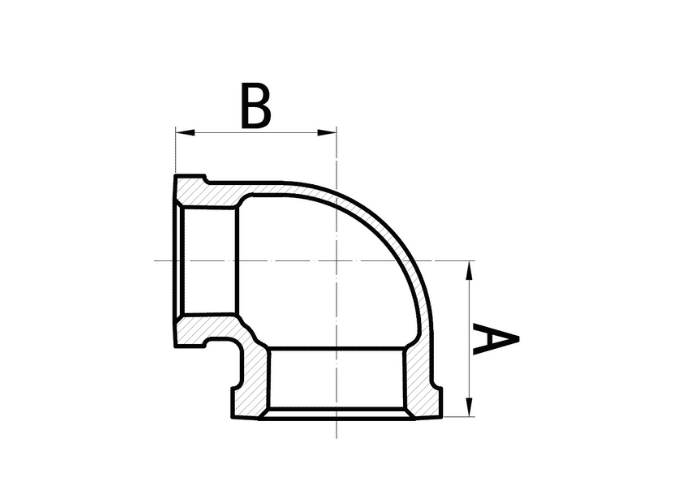

  • Galvanised Reducing Elbow Female 90 drawing

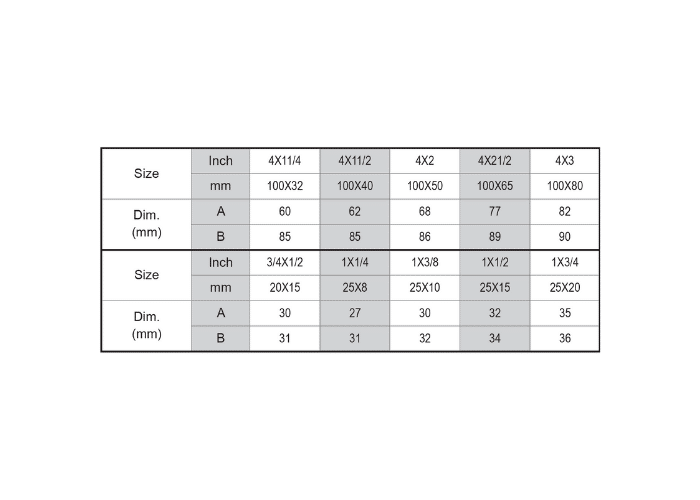

  • Galvanised Reducing Elbow Female 90 data

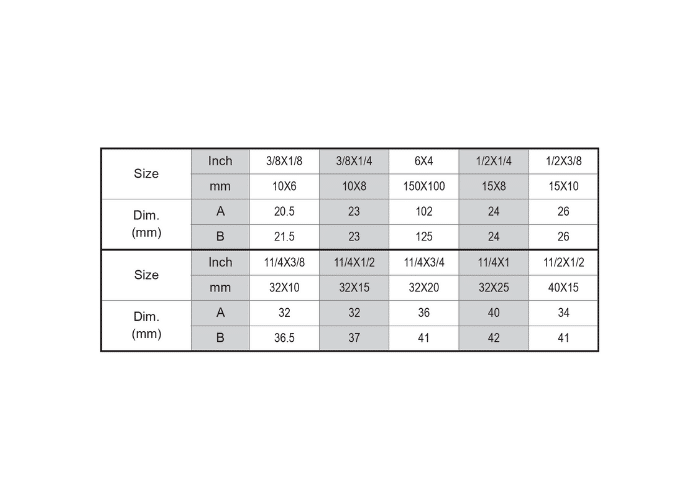

  • Galvanised Reducing Elbow Female 90 data

Malleable Iron Pipe Fittings

M.I fittings meet BS EN 10242:1995, BS EN 10242 and BS 143
& 1256, international standards, which has been verified by the
British Standards Institute (BSI) and are permitted to bear the
British Standards Kitemark Logo – Kitemark Licence No. KM67015.
MI fittings are approved by UL and FM.

  • End Connections

    BSPT Female x Female

  • Threads

    ISO 7/1 BS 21 Taper External and Internal Thread

  • Material

    M.I fittings conform to BS EN 1562 Designation
    EN-GJMB-350-10, ASTM A197 and ISO 5922.

  • Sizes Available
    1/8″ – 4″
  • Commodity / HS Code


Available options

Part No
MIGRE90FF-3/4-1/23/4″-1/2″Galv Reducing Female Elbow 90°
MIGRE90FF-1-1/21″-1/2″Galv Reducing Female Elbow 90°
MIGRE90FF-11/4-1/211/4″-1/2″Galv Reducing Female Elbow 90°
MIGRE90FF-11/4-3/411/4″-3/4″Galv Reducing Female Elbow 90°
MIGRE90FF-11/4-111/4″-1″Galv Reducing Female Elbow 90°
MIGRE90FF-11/2-111/2″-1″Galv Reducing Female Elbow 90°
MIGRE90FF-2-12″-1″Galv Reducing Female Elbow 90°
MIGRE90FF-2-11/22″-11/2″Galv Reducing Female Elbow 90°
Enquire Now
