Galvanised Malleable Iron Reducing Pitcher Tee on Branch

Galv Malleable Iron Reducing Pitcher Tee

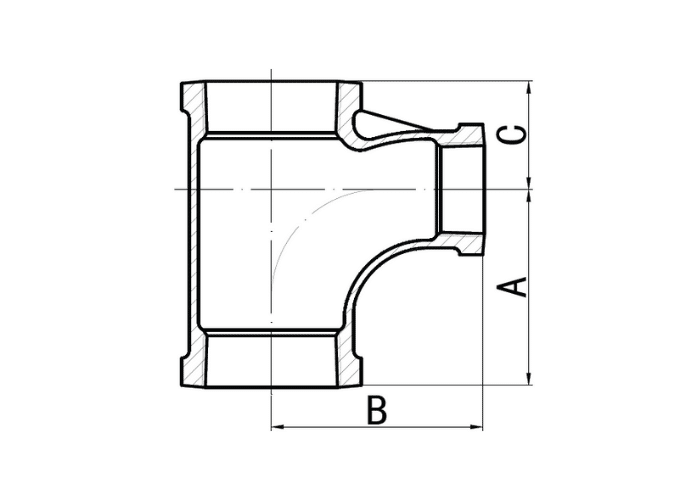

Galv Malleable Iron Reducing Pitcher Tee drawing

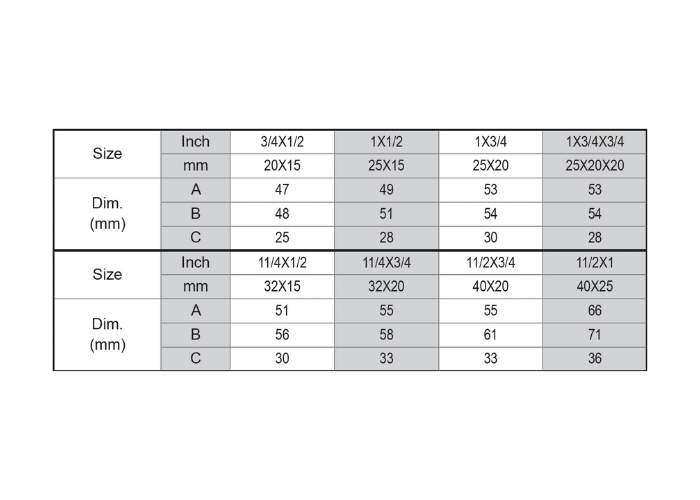

Galv Malleable Iron Reducing Pitcher Tee Data

Malleable Iron Pipe Fittings

M.I fittings meet BS EN 10242:1995, BS EN 10242 and BS 143
& 1256, international standards, which has been verified by the
British Standards Institute (BSI) and are permitted to bear the
British Standards Kitemark Logo – Kitemark Licence No. KM67015.
MI fittings are approved by UL and FM.

  • End Connections

    BSPT Female

  • Threads

    ISO 7/1 BS 21 Taper External and Internal Thread

  • Material

    M.I fittings conform to BS EN 1562 Designation
    EN-GJMB-350-10, ASTM A197 and ISO 5922.

  • Sizes Available

    3/4″ x 1″ – 11/2″ x 1″

  • Commodity / HS Code

    730719

Available options

Part No
Size
Description
MIGPTRBF-3/4-1/23/4″-1/2″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-1-1/21″-1/2″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-11/4-111/4″-1″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-11/2-111/2″-1″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-11/2-11/411/2″-11/4″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-2-12″-1″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-2-11/42″-11/4″Galv MI Pitcher Tee Reducing on Branch
MIGPTRBF-2-11/22″-11/2″Galv MI Pitcher Tee Reducing on Branch
