Brass Standpipe Adapter, Male BSPP
Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000
For use in a wide range of applications.
The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.
-
End ConnectionsMale BSPP x Standpipe
-
MaterialBrass
-
ApprovalsREACH 1907/2006
RoHS 2011/65/CE
UNI EN 1254 2:2000
PED 2014/68/UE
Silicon Free -
Sizes Available6mmx 1/8″ – 14mm x 1/2″
-
Country of OriginItaly
-
Commodity / HS Code74122000

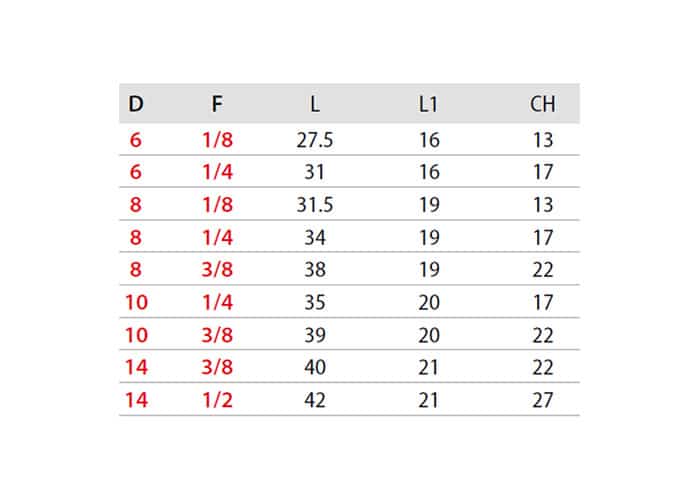

Available options
Part No |
Size |
Description |
13530-T06X | 6mm – 1/8″ | BRASS STANDPIPE ADAPTER BSPP |
13530-T06A | 6mm – 1/4″ | BRASS STANDPIPE ADAPTER BSPP |
13530-T08X | 8mm – 1/8″ | BRASS STANDPIPE ADAPTER BSPP |
13530-T08A | 8mm – 1/4″ | BRASS STANDPIPE ADAPTER BSPP |
13530-T08B | 8mm – 3/8″ | BRASS STANDPIPE ADAPTER BSP |
13530-T10A | 10mm – 1/4″ | BRASS STANDPIPE ADAPTER BSP |
13530-T10B | 10mm – 3/8″ | BRASS STANDPIPE ADAPTER BSP |
13530-T14B | 14mm – 3/8″ | BRASS STANDPIPE ADAPTER BSP |
13530-T14C | 14mm – 1/2″ | BRASS STANDPIPE ADAPTER BSP |
Enquire now for pricing
