Brass Standpipe Adapter, Male BSPP

Available options

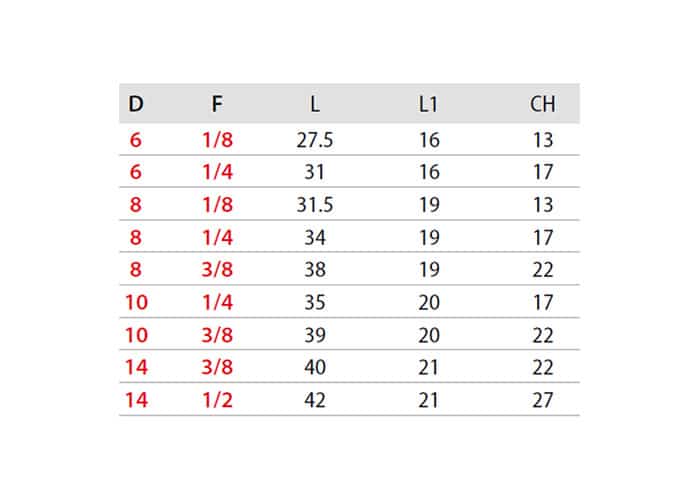

Part No
Size
Description
13530-T06X 6mm – 1/8″ BRASS STANDPIPE ADAPTER BSPP
13530-T06A 6mm – 1/4″ BRASS STANDPIPE ADAPTER BSPP
13530-T08X 8mm – 1/8″ BRASS STANDPIPE ADAPTER BSPP
13530-T08A 8mm – 1/4″ BRASS STANDPIPE ADAPTER BSPP
13530-T08B 8mm – 3/8″ BRASS STANDPIPE ADAPTER BSP
13530-T10A 10mm – 1/4″ BRASS STANDPIPE ADAPTER BSP
13530-T10B 10mm – 3/8″ BRASS STANDPIPE ADAPTER BSP
13530-T14B 14mm – 3/8″ BRASS STANDPIPE ADAPTER BSP
13530-T14C 14mm – 1/2″ BRASS STANDPIPE ADAPTER BSP

Brass compression fittings for use with a wide range of tubes. 13000 Series conforms to UNI EN 1254 2:2000

For use in a wide range of applications.

The working pressures and working temperatures depend on which type of tube is used, for this reason the values must be determined in accordance with the tubes features.

  • End Connections
    Male BSPP x Standpipe
  • Material
    Brass
  • Approvals
    REACH 1907/2006
    RoHS 2011/65/CE
    UNI EN 1254 2:2000
    PED 2014/68/UE
    Silicon Free
  • Sizes Available
    6mmx 1/8″ – 14mm x 1/2″
  • Country of Origin
    Italy
  • Commodity / HS Code
    74122000
Enquire now for pricing
