Cast Iron Ball Check Valve, Flanged Ends PN10/16.

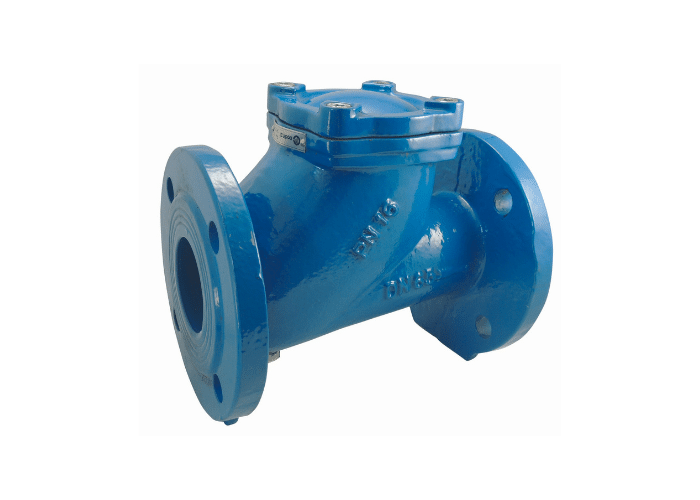

Cast Iron, Ball Check Valve. Fig: 399. Flanged PN10/16 Ends.

Grey Cast Iron GGG-25 Body + Blue Epoxy Coating.
Steel Ball
EPDM and NBR External Seals.
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN10
Working Pressure

16 – 10 Bar
Sizes Available

2″ (DN50) – 12″ (DN300)
Temperature

Max 80°C
Specification

EN 1092-2 Standard flange ends.

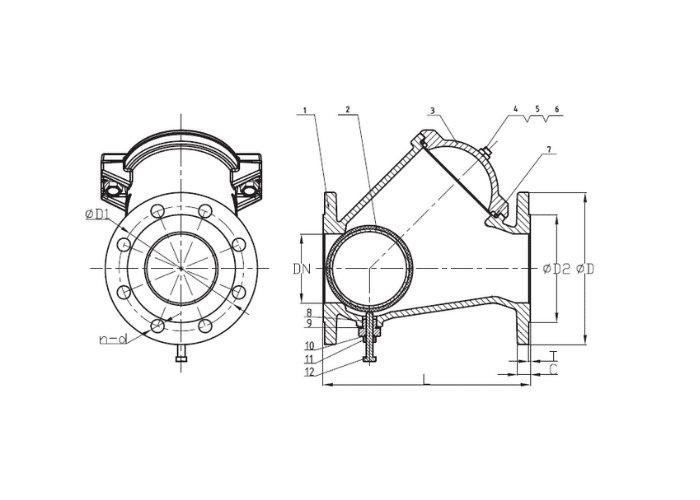

Face to Face design to DIN 3202-F4

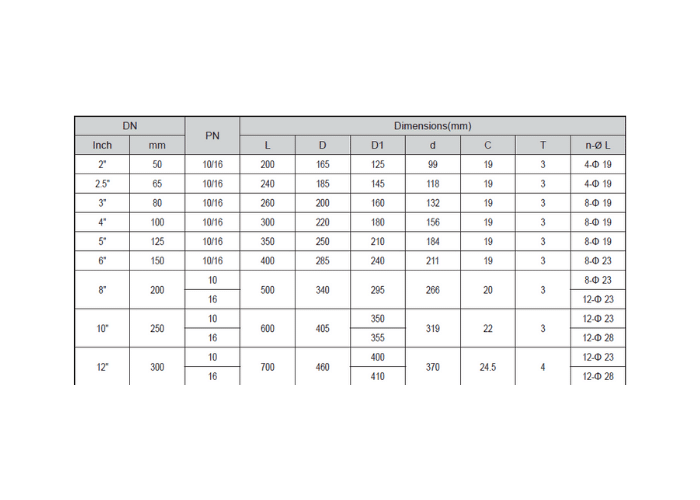

Available options

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
399-DN50	DN50		16	200	4	125
399-DN65	DN65		16	240	4	145
399-DN80	DN80		16	260	8	160
399-DN100	DN100		16	300	8	180
399-DN125	DN125		16	350	8	210
399-DN150	DN150		16	400	8	240
399-DN200	DN200		10	500	8	295
399-DN250	DN250		10	600	12	350
399-DN300	DN300		10	700	12	400

View Technical data sheet
