Cast Iron Gate Valve, Flanged Ends PN10/16, Metal/EPDM Seal.

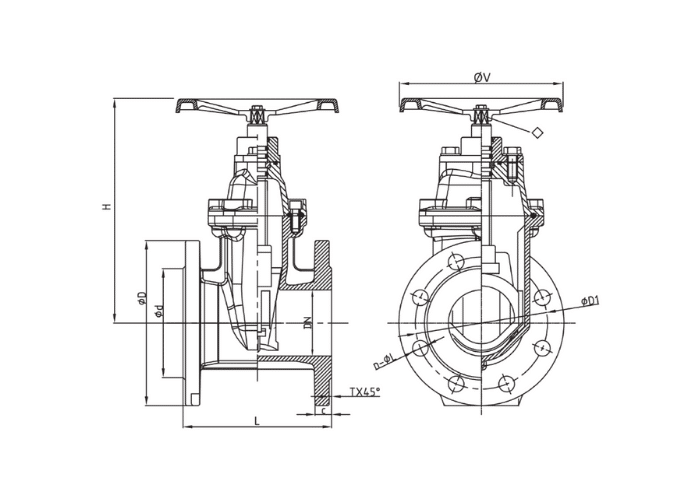

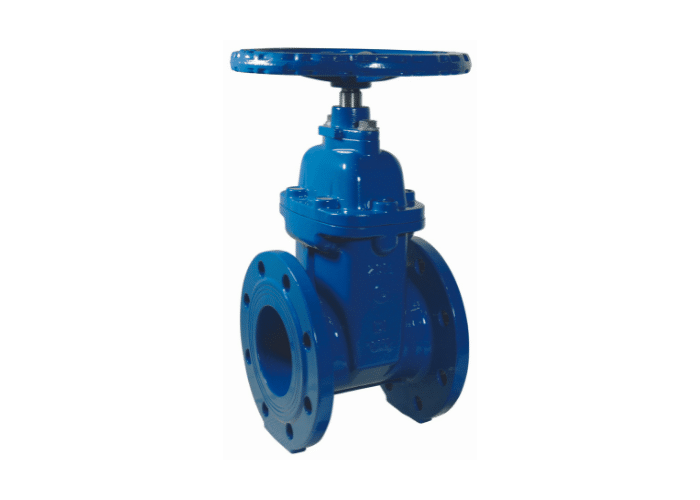

Cast Iron Gate Valve. Fig 1424. Metal/EPDM Seat.

Cast Iron Gate Valve. Fig:1424
Ductile Iron GGG-45 Body + Blue Epoxy Coating.
Ductile Iron GGG-45 Gate + EPDM Coating.
Stainless Steel Stem.
EPDM External Seals.
Cast Iron Handwheel, Clockwise Close.
Non-rising Stem.
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN10/16
Working Pressure

16 – 10 Bar
Sizes Available

DN40 – DN300
Temperature

Max 80°C
Specification

EN 1092-2 Standard flange ends.
Face to Face design to DIN 3202-F4

Available options;

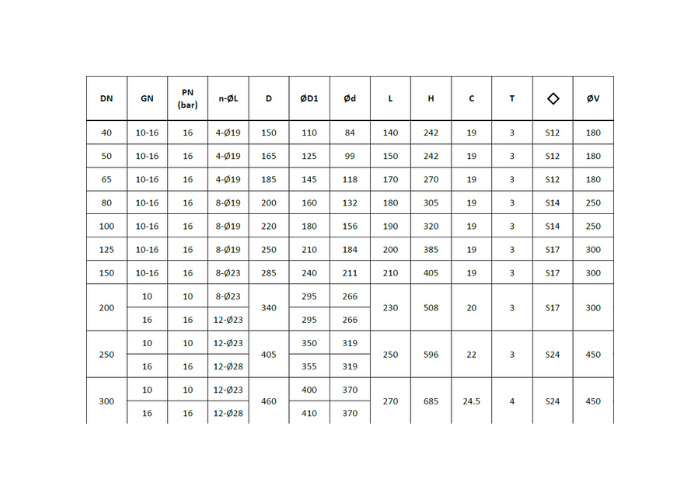

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
1424-DN40	DN40		16	140	4	110
1424-DN50	DN50		16	150	4	125
1424-DN65	DN65		16	170	4	145
1424-DN80	DN80		16	180	8	160
1424-DN100	DN100		16	190	8	180
1424-DN125	DN125		16	200	8	210
1424-DN150	DN150		16	210	8	240
1424-DN200	DN200		10	230	8	295
1424-DN200	DN200		16	230	12	295
1424-DN250	DN250		10	250	12	350
1424-DN250	DN250		16	250	12	355
1424-DN300	DN300		10	270	12	400
1424-DN300	DN300		16	270	12	410

View Technical data sheet
