Cast Iron Gate Valve, Flanged Ends PN10, Metal to Metal Seat.

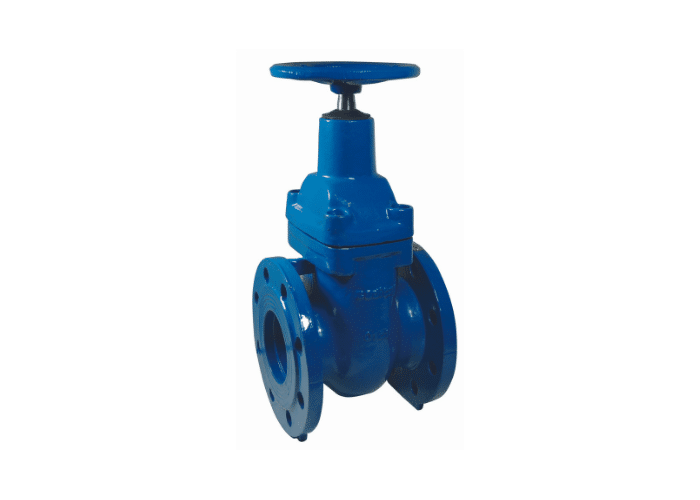

Cast iron Gate Valve Fig 424

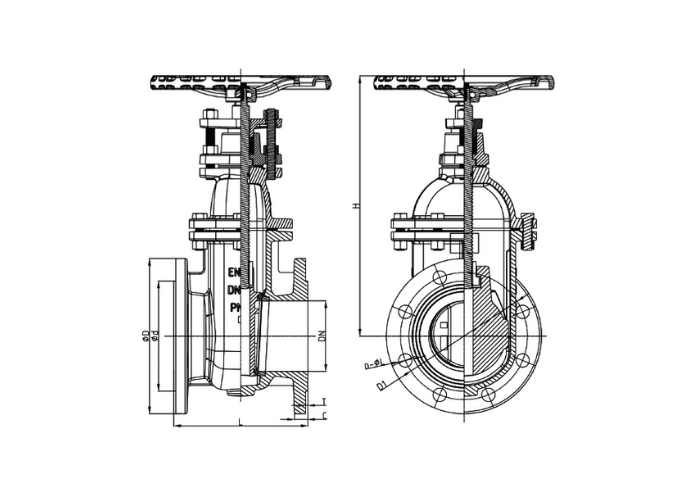

Cast Iron Gate Valve 424 drawing

Cast Iron Gate Valve. Fig: 424. GGG45 Body with Metal / Metal Seat.

Ductile Iron GGG-45 Body + Blue Epoxy Coating.
Ductile Iron GGG-45 Gate + EPDM Coating.
Brass Gate and seat. Stainless Steel Stem.
EPDM and PTFE External Seals.
Cast Iron Handwheel, Clockwise Close.
Non-rising Stem.
Metal to Metal Seat
Nameplate with total traceability: PN, DN, Batch No. (Manufacturing Date)

End Connections

Flanged Ends PN10
Working Pressure

16 – 10 Bar
Sizes Available

DN40 – DN400
Specification

EN 1092-2 Standard flange ends.
Face to Face design to DIN 3202-F4

Available options

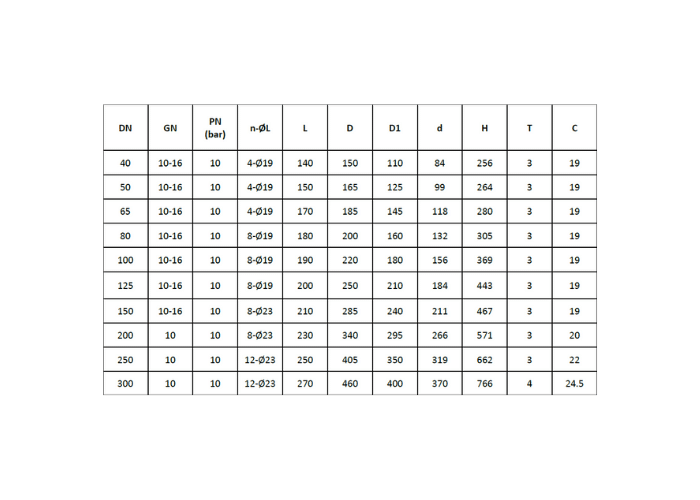

Part No.	Size		PN	F to F (mm)	No. of Holes	Centres (mm)
424-DN40	DN40		10	140	4	110
424-DN50	DN50		10	150	4	125
424-DN65	DN65		10	170	4	145
424-DN80	DN80		10	180	8	160
424-DN100	DN100		10	190	8	180
424-DN125	DN125		10	200	8	210
424-DN150	DN150		10	210	8	240
424-DN200	DN200		10	230	8	295
424-DN250	DN250		10	250	12	350
424-DN300	DN300		10	270	12	400
424-DN350	DN350		10	290	16	460
424-DN400	DN400		10	310	16	515

View Technical data sheet
