Gas Approved Brass Ball Valve

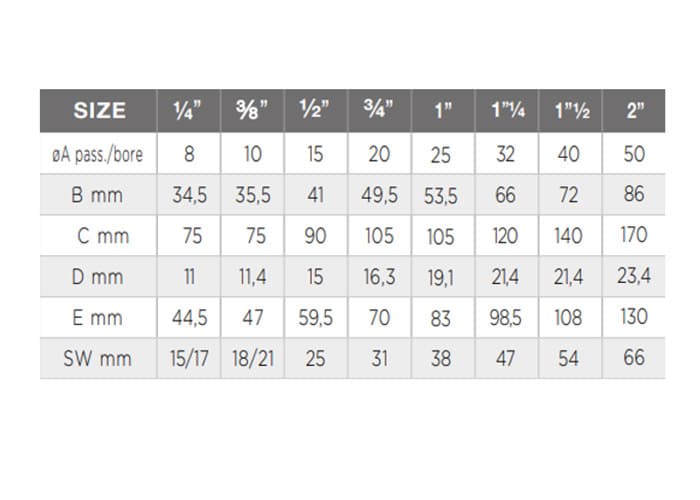

Gas Approved Ball Valve Drawing
Gas Approved
Gas Approved Ball Valve. Series 720TS. Lever Op Brass Nickel Plated Ball Valve FF

Full bore ball valve for fuel gas, professional series.
Made in Italy.
Gas Approved to EN:331 Standards.
Gas Approved Manual Lever Ball Valve with Female Threads.

  • End Connections
    F x F BSPP EN 10226
  • Working Pressure
    Fuel Gas 5 MOP
    Other uses PN 50 up to 1/2″ and PN 16 up to 4″
  • Temperature
    Fuel Gas – 20°c to +60°c
    Other uses -20°c to +130°c
  • Body
    Forged Nickel Plated Brass
  • Lever
    Zinc Plated Steel PVC Insulated
  • Seals
    PTFE
  • Approvals
    EN: 331
  • Sizes Available
    1/4″ to 4″

Available options

Part No
Size
Description
720TS-A 1/4” FF FULL BORE BSP TAPER
720TS-C 1/2” FF FULL BORE BSP TAPER
720TS-E 3/4” FF FULL BORE BSP TAPER
720TS-F 1” FF FULL BORE BSP TAPER
720TS-G 1 1/4” FF FULL BORE BSP TAPER
720TS-H 1 1/2” FF FULL BORE BSP TAPER
720TS-J 2” FF FULL BORE BSP TAPER
