Industrial Valves by Orseal

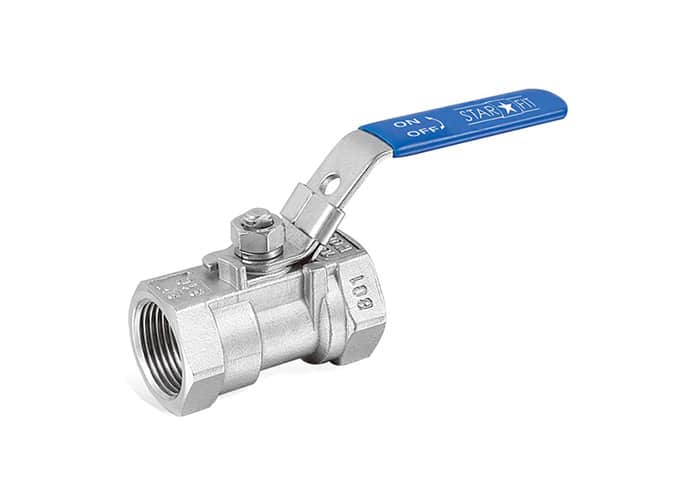

Stainless Steel 1pc Ball-Valve. SSBV10L. Reduced Bore.

Stainless Steel 1pc Ball-Valve. Series SBV10L. Manual Lockable Lever, 1000 psi rated.

SSBV10L 1pc Reduced Bore 316 Stainless Steel Ball Valve, Female BSPP threads.

  • End Connections
    Female BSPP x Female BSPP
  • Working Pressure
    1000 psi
  • Temperature
    -20°c – +200°c
  • Body
    316 Stainless Steel
  • Lever
    304SS with Plastic Cover
  • Seals
    PTFE
  • Sizes Available
    1/4″ – 3″

Available options

Part No
Size
Description
SSBV10L-1/4 1/4″ BSP One Piece RB Ball Valve
SSBV10L-3/8 3/8″ BSP One Piece RB Ball Valve
SSBV10L-1/2 1/2″ BSP One Piece RB Ball Valve
SSBV10L-3/4 3/4″ BSP One Piece RB Ball Valve
SSBV10L-1 1″ BSP One Piece RB Ball Valve
SSBV10L-11/4 1 1/4″ BSP One Piece RB Ball Valve
SSBV10L-11/2 1 1/2″ BSP One Piece RB Ball Valve
SSBV10L-2 2″ BSP One Piece RB Ball Valve
Enquire Now

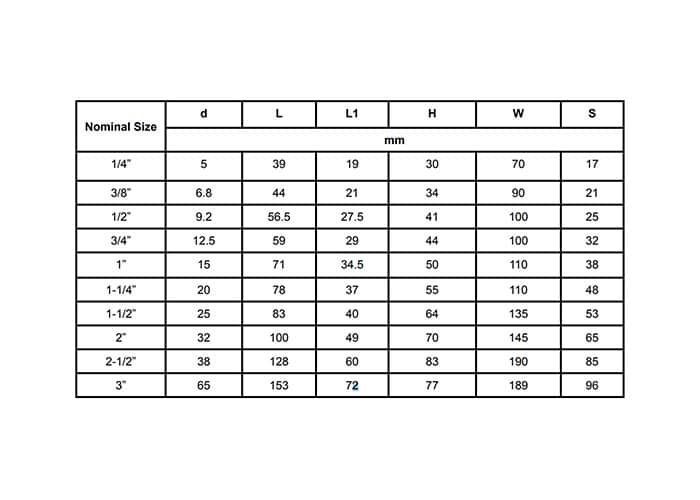

View Technical data sheet
