Industrial Valves by Orseal

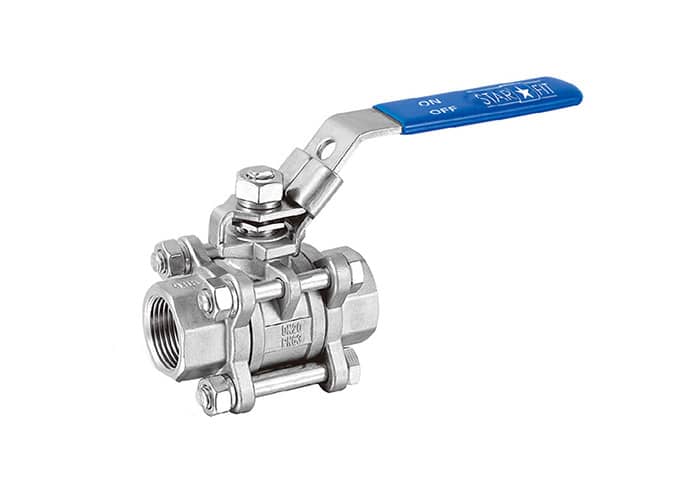

SSBV30L Stainless Steel 3pc Ball-Valve. 316SS.

Stainless Steel 3pc Ball-Valve. Lockable Lever. Full Bore.

SSBV30L 3pc Full Bore 316 Stainless Steel Ball Valve, Lockable Lever Handle, Female BSPP

  • End Connections
    Female BSPP x Female BSPP
  • Working Pressure
    1000 psi
  • Temperature
    -20°c – + 200°c
  • Body
    316 Stainless Steel
  • Lever
    304SS with Plastic Cover
  • Seals
    PTFE
  • Sizes Available

    1/4″ – 2″

Available options

Part No
Size
Description
SSBV30L-1/4 1/4″ BSP Three Piece FB Ball Valve
SSBV30L-3/8 3/8″ BSP Three Piece FB Ball Valve
SSBV30L-1/2 1/2″ BSP Three Piece FB Ball Valve
SSBV30L-3/4 3/4″ BSP Three Piece FB Ball Valve
SSBV30L-1 1″ BSP Three Piece FB Ball Valve
SSBV30L-11/4 1 1/4″ BSP Three Piece FB Ball Valve
SSBV30L-11/2 1 1/2″ BSP Three Piece FB Ball Valve
SSBV30L-2 2″ BSP Three Piece FB Ball Valve
Enquire Now

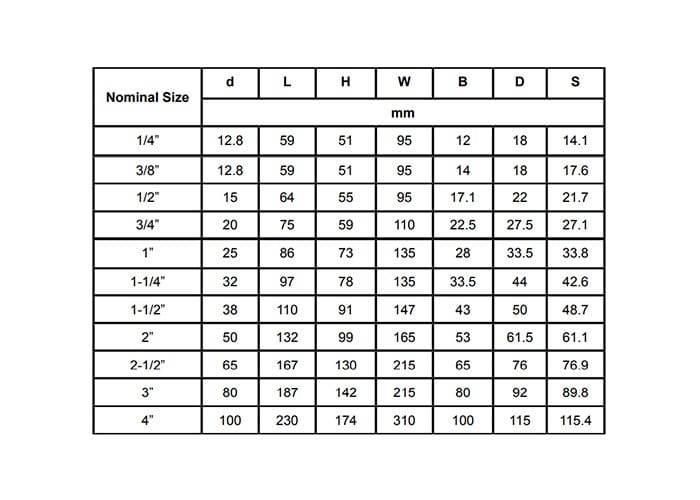

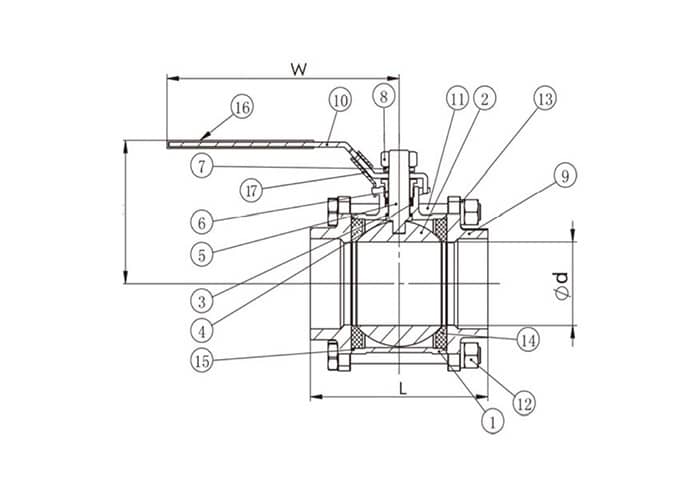

View Technical data sheet
